Tire wall for race tracl

Is there a way to create sort of wall made from tires so dont have to place them individualy? would save a lot of time :leicht_lächelndes_Gesicht:

20 ANTWORTEN 20
Nachricht 2 von 21
baniabdelwaheb1
als Antwort auf: Toms_Balodis

Hi Toms,



Try Curtain walls.

Nachricht 3 von 21
FGPerraudin
als Antwort auf: Toms_Balodis

Yes, just create a line-based component that repeats your tires!



François-Gabriel



Francois-Gabriel Perraudin
BIM management and coaching

Nachricht 4 von 21
FGPerraudin
als Antwort auf: FGPerraudin

screencast to come!



Francois-Gabriel Perraudin
BIM management and coaching

Nachricht 5 von 21
FGPerraudin
als Antwort auf: FGPerraudin

Alright, here is a screenshot of the family template you need to pick:


Here it is:

And the basic family I have created as an attachment!

You can then play with the formula to adapt the family, add another tyre to the arrayed group for two layers, etc!

François-Gabriel


Francois-Gabriel Perraudin
BIM management and coaching

Nachricht 6 von 21
Toms_Balodis
als Antwort auf: FGPerraudin

Awsome, one more litle thing can it be made to go in arcs or circles ?

Nachricht 7 von 21
Alfredo_Medina
als Antwort auf: Toms_Balodis

Create a family with the generic model adaptive template. Create a circle, and do Create Form.

In your project, use In Place-Mass. Create a circle or an arc as a reference line. Select arc or circle and use Divide Path.

Put the "tire" family, by face, on one of the nodes of the divided path.

Repeat the "tire".

Finish the In Place-Mass.





Alfredo Medina _________________________________________________________________ ______
Licensed Architect (Florida) | Freelance Instructor | Profile on Linkedin
Nachricht 8 von 21
ToanDN
als Antwort auf: Toms_Balodis

@Toms_Balodis



There are many ways to create it as already mentioned.  I would favor @Alfredo_Medina's divided path and adaptive family approach since it could create curved walls, even on a slope more easily.



Nachricht 9 von 21
FGPerraudin
als Antwort auf: ToanDN

Yes, well it all depends on the level of BIM you want to attain.



In -place mass is a MASS, and will be treated as such.



Line based component can be attributed to a different category (furniture, etc...)



It all depends of how your model is used in the aftermath!



François-Gabriel



Francois-Gabriel Perraudin
BIM management and coaching

Nachricht 10 von 21
Alfredo_Medina
als Antwort auf: Toms_Balodis

Not really, because the "tire" can be a generic family, shared, of any category available, which can be listed in schedules.

Alfredo Medina _________________________________________________________________ ______
Licensed Architect (Florida) | Freelance Instructor | Profile on Linkedin
Nachricht 11 von 21
Toms_Balodis
als Antwort auf: FGPerraudin

Created a costume rail sistem works like a charm thank you all for the help :leicht_lächelndes_Gesicht:

Nachricht 12 von 21
Anonymous
als Antwort auf: Toms_Balodis

Hi



Can anyone help me to stack the tyres on top of each other to create a wall for a shooting range



Please help

Nachricht 13 von 21
ToanDN
als Antwort auf: Anonymous

Did you read any if the solutions above? They all work.
Nachricht 14 von 21
Anonymous
als Antwort auf: ToanDN

Hi


Sorry but I'm new to revit, so I don't really understand everything, I can use the tyre file but I can't edit it

Thanks for the reply
Nachricht 15 von 21
ToanDN
als Antwort auf: Anonymous

Do you want the tires stack or running bond?
Nachricht 16 von 21
Anonymous
als Antwort auf: ToanDN

Stacked



I need one line of tyres 3m high and one line that is 5m high. Straight lines will be perfect

Nachricht 17 von 21
ToanDN
als Antwort auf: Anonymous

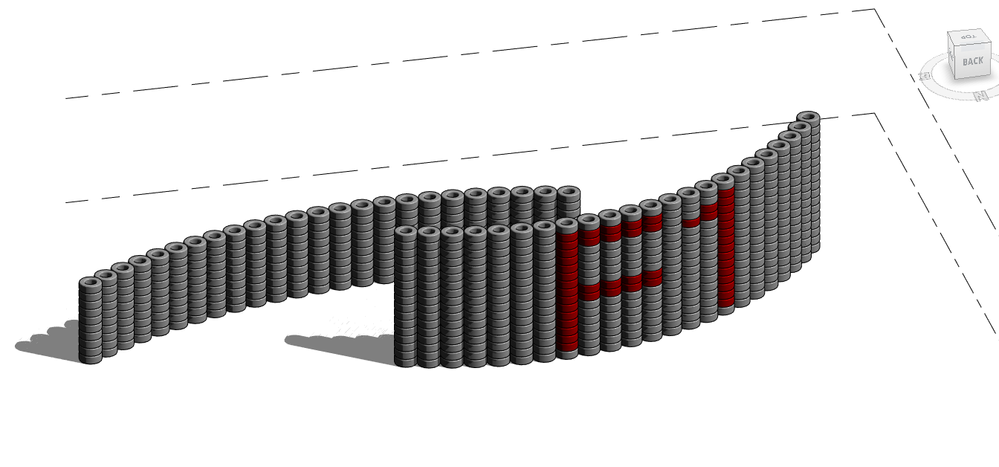

See attached file.  Copy the curtain wall and paste it onto your model.  You can draw it in any shapes and change the height to however you want.  You can edit the tire family and give it a material parameter if you want to paint them in different colors.



Annotation 2019-11-26 125830.png

Nachricht 18 von 21
Anonymous
als Antwort auf: ToanDN

Hi



That looks perfect, this is going to sound stupid but how do I get that revit file in my existing project



Thanks again

Nachricht 19 von 21
ToanDN
als Antwort auf: Anonymous

Open ****, select the tire walls, ctrl+c, switch to your project, ctrl + v.
Nachricht 20 von 21
Anonymous
als Antwort auf: ToanDN

Thanks got it.



How can I change it into a straight line
