thick lines while converting to pdf

31 ANTWORTEN 31
GELÖST
Antworten
Nachricht 1 von 32
Mohamed_Arshad
10058 Aufrufe, 31 Antworten

thick lines while converting to pdf

Hiii Geniuses,

kindly solve this....






Thanks & Regards,
Mohamed Arshad K
31 ANTWORTEN 31
Nachricht 2 von 32
barthbradley
als Antwort auf: Mohamed_Arshad

Turn your Thin Lines OFF -- and be amazed.



Thin Lines.png

Nachricht 3 von 32
hmunsell
als Antwort auf: Mohamed_Arshad

  • what does it look like in your view/on a sheet?
  • Are your Thin Lines (TL) turned on when your plotting?
    • if so turn them off, this will not effect plotting, but having thin lines on can deceive you into thinking elements have no weight.





Howard Munsell
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.



EESignature


Nachricht 4 von 32
asal_keyhani1993
als Antwort auf: hmunsell

hi

I have a same issue with the thick line.my problem is when I converting the drawing to pdf the line turns out too thick.

I also tried to one and off the thin line but it doesn't work. i also tried the visibility graphic and change the line weight to 1 even that it doesn't work. it is really frustrating I don't know what to do .

Nachricht 5 von 32
arshad.k
als Antwort auf: asal_keyhani1993

hi @asal_keyhani1993



If possible kindly send your error file, I can check and revert you back.

Nachricht 6 von 32
asal_keyhani1993
als Antwort auf: arshad.k


Nachricht 7 von 32

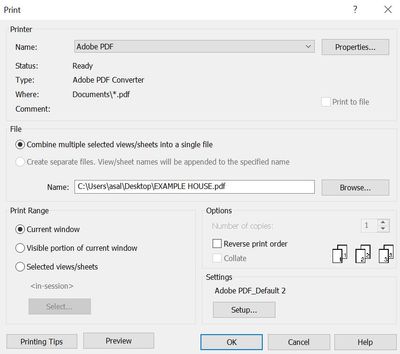

print 2.JPG

print 3.JPG

   

Nachricht 8 von 32
arshad.k
als Antwort auf: asal_keyhani1993

hi @asal_keyhani1993

Try using Microsoft Print to PDF instead of Adobe.



I too faced your issue, like you I use an external application PDF24 creator to convert PDF,

So it also makes lines too dark and then I change my Printer to Microsoft, My problem gets solved.

So try it once.



Nachricht 9 von 32
asal_keyhani1993
als Antwort auf: arshad.k

I did but no it doesn't work .



Nachricht 10 von 32
arshad.k
als Antwort auf: asal_keyhani1993

hi @asal_keyhani1993

Change Scale and try it, because sometimes, scaling also makes drawing lines too dark.

Nachricht 11 von 32
asal_keyhani1993
als Antwort auf: arshad.k

scale changed.JPG

Nachricht 12 von 32

now The line weight is a bite pale

Nachricht 13 von 32
arshad.k
als Antwort auf: asal_keyhani1993

Hi, @asal_keyhani1993



Ok then Control using Scaling and Fix it.



Nachricht 14 von 32
asal_keyhani1993
als Antwort auf: arshad.k

Hi

you mean i should changed the scale again ?

Nachricht 15 von 32
arshad.k
als Antwort auf: asal_keyhani1993

hi @asal_keyhani1993

Keep your old scale size and change line weight.

Hope this helps!!


Change Line weights according to your scale size.



Check below link once

https://revitpure.com/blog/13-tips-to-understand-line-weights-in-revit

Nachricht 16 von 32
asal_keyhani1993
als Antwort auf: arshad.k

Thank you it's better than before but still look little greyish .



Nachricht 17 von 32
arshad.k
als Antwort auf: asal_keyhani1993

Hi @asal_keyhani1993



Follow below video. If it solve your problem don't forget to Accecpt the solution.

Thank you.



URL:https://autode.sk/3Iswdcr





Nachricht 18 von 32
asbalajicivil
als Antwort auf: Mohamed_Arshad

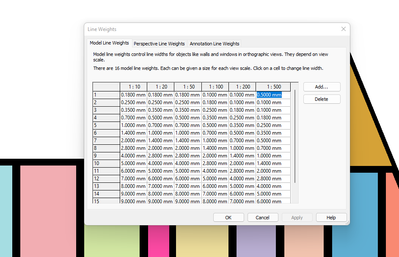

viibility graphic to object style and change line weight as given image below..






Nachricht 19 von 32
asal_keyhani1993
als Antwort auf: asbalajicivil

hi again

I have follow your instruction but still the same .



Nachricht 20 von 32
