I have this terrain and the road. How can I lay down the road into the terrain? Is it possible?

Accepted solutions (1)
971 Views
3 Replies
Replies (3)
Message 2 of 4

aRcHiTeCt.JM
Mentor
Mentor
Accepted solution

@Anonymous wrote:

I have this terrain and the road. How can I lay down the road into the terrain? Is it possible?




… hi @Anonymous

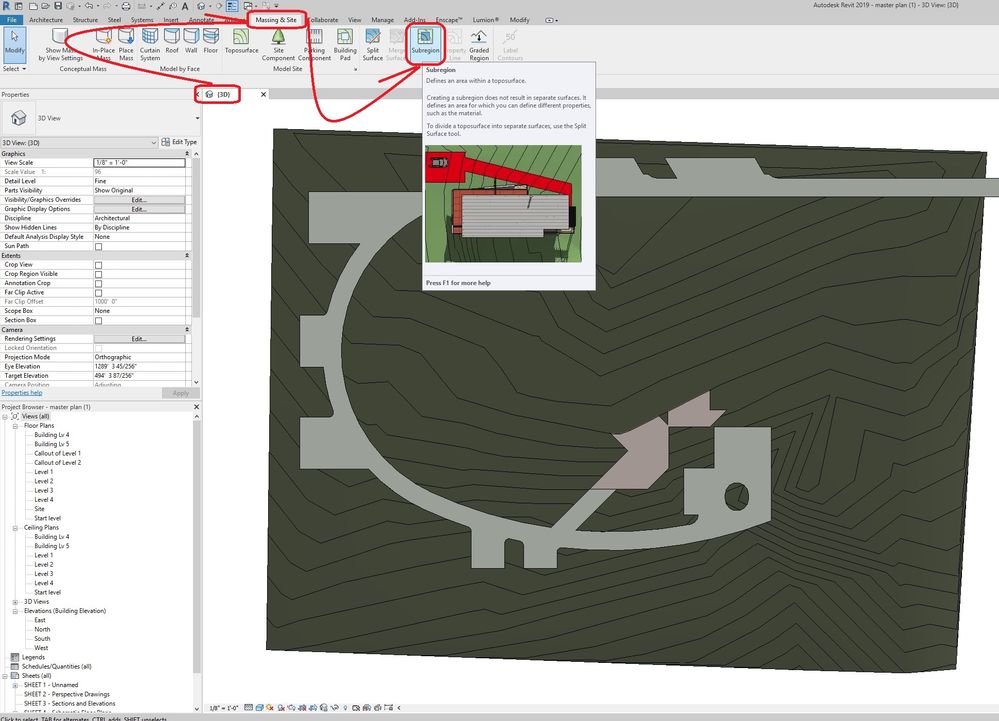

… go on 3dview and click top view






….. on 3dview go massing and site

…. And click subregion






….. click on pick lines and start picking all lines for the road






….. when finished the entire contour

…. Click finish






….. rotate your 3dview

…. On topography – choose your material

… and click OK






… click on the “floor” street you have drawn and click DELETE






….. there you go

… you have your terrain subregion street/road






….. if you want to do the same subregion for your building you can do it

… or you can choose to make a building PAD






…. Go to massing and site

…. Click on Building Pad






…. Boundary line

….. pick lines

… and start drawing your building shape

…. Then click OK








….. now you got terrain, road and building pad






…. Attached .rvt
