Tapered In-Place Wall Rotating Materials

10 ANTWORTEN 10
GELÖST
Antworten
Nachricht 1 von 11
Anonymous
756 Aufrufe, 10 Antworten

Tapered In-Place Wall Rotating Materials

I modeled an in-place tapered retaining wall with a curved segment, and in realistic mode the stone veneer is rotated about 20° on the curve, and rotated 90° on one of the straight segments (see screen shot). Is there a fix for this? I modeled all of the stone towers in the project the same way, and none of them rotated the stone.

 Any help is appreciated, thanks!

Traci





tapered wall screen shot.jpg

10 ANTWORTEN 10
Nachricht 2 von 11
barthbradley
als Antwort auf: Anonymous

Duplicate the material and then rotate the duplicate's image 20 degrees. Use that new material for your retaining wall. Wouldn't that work?

Nachricht 3 von 11
PijPiwo
als Antwort auf: Anonymous

Make your sweep a little longer than needs to be and cut the end with a void - all in one sketch.



FYI, you don’t need to cut the end. The sweep could be cut anywhere even a small piece of a void buried inside the wall somewhere will do the job, but I think cutting the end makes sense in this case.

Nachricht 4 von 11
barthbradley
als Antwort auf: PijPiwo

 but it isn't a hatch pattern, @PijPiwo. It's a material image.

Nachricht 5 von 11
barthbradley
als Antwort auf: PijPiwo

Wow, I didn't know this trick worked with materials! Wicked Cool! Thanks for posting it, @PijPiwo. You're the man!



Cheers

Nachricht 6 von 11
Anonymous
als Antwort auf: PijPiwo

@PijPiwo, thank you! I admit I didn't think that was going to work, but it worked beautifully. I was thinking that I was going to have to model the retaining wall in segments and duplicate material for each to get it right.

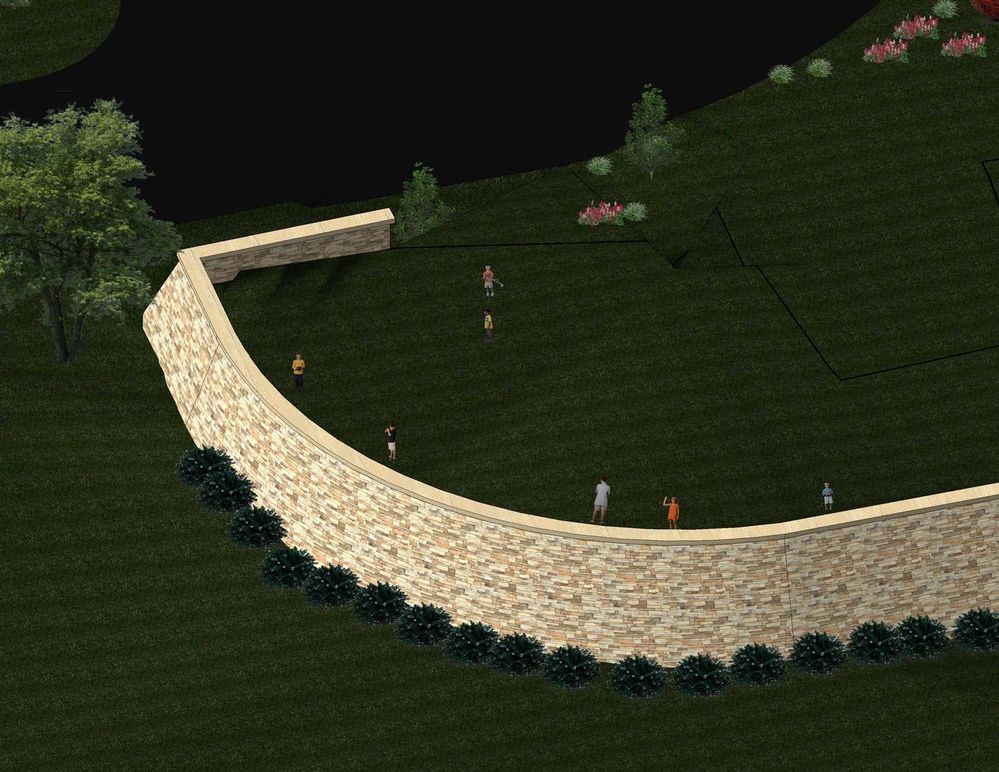

tapered wall corrected.jpg

Nachricht 7 von 11
Anonymous
als Antwort auf: barthbradley

That is the way I would have done it. You can rotate the image. You have to duplicate the image tab as well.



Matthew

Nachricht 8 von 11
chrisplyler
als Antwort auf: PijPiwo

PijPiwo,



Wow! What a great trick!



How did you learn about it? Do you have any link to an explanation of what is going on here?

Nachricht 9 von 11
PijPiwo
als Antwort auf: chrisplyler

I’ve read about it a few years back on one of the forums. I believe it was Steve Stafford’s post, but I’m not sure how he learnt about it or came up with this. I don’t have any explanation for this behavior and I don’t think anybody has.



…yeah, using a void to fix the material orientation!!!??? … wtf, lol? …it doesn’t make any sense at all, right? Who would’ve thought?  I wonder who came up with this first though.

Nachricht 10 von 11
barthbradley
als Antwort auf: PijPiwo

That's who I first learned it from: Steve Stafford. Think he called it "quirky" or something like that. It was a few years ago.

Nachricht 11 von 11
ToanDN
als Antwort auf: PijPiwo

I think it has something to do with UVW mapping of materials which Revit does not provide any control over.  So, tricks like this are golden to keep inside our sleeve.
