Symbolic lines showing up in elevation view when behind the starting point of the view

22 ANTWORTEN 22
GELÖST
Antworten
Nachricht 1 von 23
lshannonEQEBT
3679 Aufrufe, 22 Antworten

Symbolic lines showing up in elevation view when behind the starting point of the view

Okay, I have a good one here. I have a family with nested casework that has symbolic lines to designate cabinet openings. For some reason, the symbolic lines are showing up on both the front and back views. The view is set to Hidden Line and Draw in Foreground is checked:



Front:  lshannonEQEBT_0-1596126073760.png  Back: lshannonEQEBT_1-1596126079650.png




I have tried to make a masking region that  is attached to the back plane of the cabinet, but it hasn't worked. I may be using it wrong though.



Now, my second problem is that these symbolic lines also show up in my interior elevation views in the full model, even though they are behind the actual view area of the elevation (3d view provided so it is easier to see what is supposed to be under the sink, i.e. nothing):





Thoughts?





22 ANTWORTEN 22
Nachricht 2 von 23
barthbradley
als Antwort auf: lshannonEQEBT

Host a Masking Region on Ref. Plane behind the lines by unchecking Draw in Foreground .



Explanation of process here:



https://knowledge.autodesk.com/support/revit-products/learn-explore/caas/CloudHelp/cloudhelp/2016/EN...

Nachricht 3 von 23
lshannonEQEBT
als Antwort auf: barthbradley

@barthbradley



Yeah I tried that, but failed. Will try it again.

Nachricht 4 von 23
barthbradley
als Antwort auf: lshannonEQEBT

Make sure the Masking Region's "Work Plane" is correct.






...and the Project View not set to Wireframe by accident.  It happens.

Nachricht 5 von 23
barthbradley
als Antwort auf: barthbradley

AH! I know what talking about now! Masking Region won't help.  Can't you leave the Door Geometry Visible in the Elevation View?

Nachricht 6 von 23
ToanDN
als Antwort auf: lshannonEQEBT

Set those symbolic lines to Background, not Foreground, in the family.
Nachricht 7 von 23
barthbradley
als Antwort auf: lshannonEQEBT

Have you tried just activating and adjusting the View's Far Clip?

Nachricht 8 von 23
lshannonEQEBT
als Antwort auf: barthbradley

@ToanDN do you mean unchecking the Foreground checkbox? I have tried it both ways, and it still shows the same.



@barthbradley THe hidden line vs wireframe was the first thing I checked :leicht_lächelndes_Gesicht: It actually was wrong at first in the family, so I changed it and that fixed the weird projection onto the other side in the family. It however did not fix the issue with the lines being on both sides of the casement nested family. I hope that makes sense.

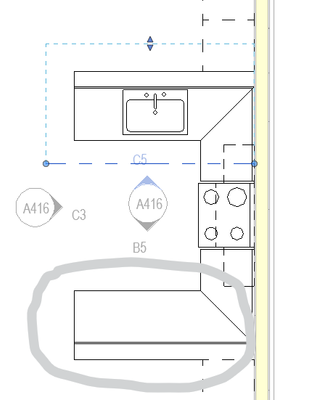

The far clip is fine, the symbolic lines are actually from behind the whole elevation. See the new photo, I circled whee the symbolic lineas are projecting from.






Nachricht 9 von 23
barthbradley
als Antwort auf: lshannonEQEBT

Wait a minute! Are you saying the lines are being projected from an element behind the cut plane?  Sounds like the "old Hidden Line Trick".  Open the family, go to Plan View and see if their is a Line drawn from the Element outward and away from the Element.  This line may be intersecting with the Cut Plane in the Project.



This article describes what I'm referring to when I say "Old Model Line Trick":



https://revitoped.blogspot.com/2008/01/aaaahthe-old-invisible-line-trick-eh-99.html





Nachricht 10 von 23
lshannonEQEBT
als Antwort auf: barthbradley

@barthbradley



This is what I see....




Nachricht 11 von 23
barthbradley
als Antwort auf: lshannonEQEBT

Okay, I see it's one Family. What I said wouldn't apply in this case.



Post the Family.

Nachricht 12 von 23
ToanDN
als Antwort auf: lshannonEQEBT

Share the family here.
Nachricht 13 von 23
barthbradley
als Antwort auf: lshannonEQEBT

Try replacing the Symbolic Lines with Model Lines drawn on the face of the cabinet doors.

Nachricht 14 von 23
ToanDN
als Antwort auf: lshannonEQEBT

Did you build all of the cabinets directly in the one casework family? If you create the cabinets as individual families and draw the symbolic lines in these family, nest them in the casework assembly family then you shouldn't have this problem.
Nachricht 15 von 23
lshannonEQEBT
als Antwort auf: ToanDN

@ToanDN @barthbradley

 Here is the family that we are working with. They are cabinet families nested into the larger family. We have some other families like this so I'm trying to not have to change too many of them individually. Also, we are having an issue with tagging the cabinets in this family if you all want to tackle that as well :leicht_lächelndes_Gesicht:

Nachricht 16 von 23
barthbradley
als Antwort auf: lshannonEQEBT

I would do it exactly like the stock Revit Base Cabinets are done.  Have you looked at those?

Nachricht 17 von 23
ToanDN
als Antwort auf: lshannonEQEBT

Make these nested cabinets Shared.  No lines.










Nachricht 18 von 23
lshannonEQEBT
als Antwort auf: ToanDN

@ToanDN



This worked for the lines! So what does it mean by having them "Shared"?

Nachricht 19 von 23
barthbradley
als Antwort auf: lshannonEQEBT
Nachricht 20 von 23
ToanDN
als Antwort auf: lshannonEQEBT


@lshannonEQEBT wrote:

@ToanDN



This worked for the lines! So what does it mean by having them "Shared"?


Revit treats shared families nested in an assembly family as if they were inserted directly in the project and not some dead pieces in the assembly family, and that so they respect the cut of the elevation.   You can also tag and schedule them in the project.



http://revitoped.blogspot.com/2013/09/family-not-shared-vs-shared.html



https://knowledge.autodesk.com/support/revit-products/learn-explore/caas/CloudHelp/cloudhelp/2018/EN...
