Surface pattern on walls - cut window

[Joris.vd.Meulen]

Hi,

I've got a brick wall. surface pattern : horizontal stripes. Cutpattern: solid. Shows just fine.

I place a window in that wall, cuts it nicely.

The window has a little setback of 7cm (or 2,2").

Viewing 3D I notice the setback renders as a solid (cause it get's 'cut'). However I would like see the setback with horizontal stripes.

Anybody got a workaround for this? (or no workaround but a decent solution).

3Pinter

[ryan.duell]

You should be able to get at least 2 sides of the pattern to wrap by editing the wall type > and enabling one of the Wrapping At Inserts settings.

Video Example: http://screencast.com/t/taI6sswZb

Please let me know if this helps this condition.

Thank you,

[Joris.vd.Meulen]

Ty Ryan,

Your screencast did solve my problem. And created a new problem.

The exterior wall is wrapped (as I told Revit to do) however the wrapping altered the connection wall-window.

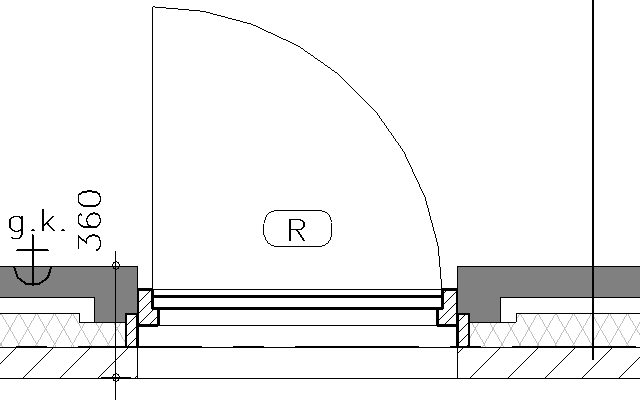

Current version: not wrapped at inserts.

This is the wrapped version exterior, which gives good 3d looks but horrible maserony.

[ryan.duell · Accepted solution]

When wrapping, the family is used to determine this condition.  For example, please see the following post:

http://revitclinic.typepad.com/my_weblog/2011/02/revit-quiz-what-controls-the-wall-wrapping-location...

Thank you,

[Joris.vd.Meulen]

ahhhhh! PERFECT!

Learned something new today. Thank you.

(crap now I can adjust all my window families)
