Surface Pattern Clipping in 3D view

18 ANTWORTEN 18
GELÖST
Antworten
Nachricht 1 von 19
good_man_27
923 Aufrufe, 18 Antworten

Surface Pattern Clipping in 3D view

I'm using the default (Masonry Brick 75x225) fill pattern for the walls' foreground surface pattern, and the default (Spanish Tile) fill pattern for the roof.

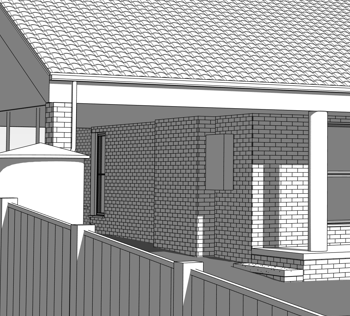

As you can see in the image below, at sharp angles (green question marks), the wall pattern gets clipped/greyed out. And while I might be able to ignore those, I DEFINITELY can't ignore the roof. It's all greyed out in the views I need.






Mind you, if you are looking down at the roof, so the view angle is kind of "soft", the pattern will show correctly:






Please help.



18 ANTWORTEN 18
Nachricht 2 von 19
barthbradley
als Antwort auf: good_man_27

Try changing your Perspective View Scale.

Nachricht 3 von 19
good_man_27
als Antwort auf: good_man_27

Sorry, but I don't know how to do that. If the 3D view mode was set to Orthographic, the Scale does show at the bottom of the scree, where you can set it, but if the view was set to Perspective, the way I need my 3D view to be presented, the scale gets locked:









Nachricht 4 von 19
ToanDN
als Antwort auf: good_man_27

Set the view to Ortho, change scale, then set it back to perspective. Not sure if it will fix the issue tell you the truth.

Nachricht 5 von 19
barthbradley
als Antwort auf: good_man_27

If View Scale doesn't correct, then it could be too sharp of an angle.  It's not uncommon. Adjusting the Viewing Angle ever so slightly generally fixes it.

Nachricht 6 von 19
good_man_27
als Antwort auf: barthbradley

Thanks guys. Yes, I did realise it was the view angle. Apparently Revit clips/fades surface patterns at sharp angles. I was wondering if there was a way to set how sharp the angle can go before Revit starts clipping.

Nachricht 7 von 19
ToanDN
als Antwort auf: good_man_27

Attached is a PDF export from a perspective view and if you zoom in you can still see the pattern even though the angle is sharp.



Maybe you should share your file.

Nachricht 8 von 19
good_man_27
als Antwort auf: ToanDN

Thanks @ToanDN. Very impressive. Any chance you could take a screen shot for the export dialogue? I've practically tried changing all settings, but still didn't get the roof pattern.

Nachricht 9 von 19
good_man_27
als Antwort auf: good_man_27

@ToanDN , I believe the surface pattern you are using in the PDF you provided is (Drafting) type. It seems that Revit can handle Drafting surface patterns much better. If I chose one drafting surface pattern, it does export nicely.



The issue is, the pattern I'm using for the roof is Spanish Tile, which is a Model pattern.

Nachricht 10 von 19
ToanDN
als Antwort auf: good_man_27


@good_man_27 wrote:

@ToanDN , I believe the surface pattern you are using in the PDF you provided is (Drafting) type. It seems that Revit can handle Drafting surface patterns much better. If I chose one drafting surface pattern, it does export nicely.



The issue is, the pattern I'm using for the roof is Spanish Tile, which is a Model pattern.


No it is a model pattern.






Nachricht 11 von 19
ToanDN
als Antwort auf: good_man_27


@good_man_27 wrote:

Thanks @ToanDN. Very impressive. Any chance you could take a screen shot for the export dialogue? I've practically tried changing all settings, but still didn't get the roof pattern.


Nothing special about the export settings.  But I did change the view scale of the camera view from 3/32" = 1' to 3" = 1' to achieve the result.  I already told you how to change the scale in an earlier reply.






Nachricht 12 von 19
good_man_27
als Antwort auf: ToanDN

@ToanDN, mate I really appreciate your time providing this. Could you please pass on the surface pattern you are using, (Shake 6")? Any PAT file?

Nachricht 13 von 19
ToanDN
als Antwort auf: good_man_27


@good_man_27 wrote:

@ToanDN, mate I really appreciate your time providing this. Could you please pass on the surface pattern you are using, (Shake 6")? Any PAT file?


The material and pattern is from the Architectural Imperial Template.

Nachricht 14 von 19
good_man_27
als Antwort auf: good_man_27

I use metric template! Any idea how to exort the surface patters on the imperial template as a PAT file?

Nachricht 15 von 19
ToanDN
als Antwort auf: good_man_27

I added the material to the attached metric project.  But I can guarantee your spanish tile material will work the same.

Nachricht 16 von 19
good_man_27
als Antwort auf: ToanDN

I use metric template! Any idea how to exort the surface patters on the imperial template as a PAT file?

Nachricht 17 von 19
good_man_27
als Antwort auf: ToanDN

@ToanDN



Kindly,



1. Please explain to me how to get the patterns on the Revit file you attached transfered to my Revit project file



2. Do you suggets a fix in regard of the Spanish Tile pattern, so it gets displayed nicely?

Nachricht 18 von 19
ToanDN
als Antwort auf: good_man_27


@good_man_27 wrote:

@ToanDN



Kindly,



1. Please explain to me how to get the patterns on the Revit file you attached transfered to my Revit project file

You can use Transfer Project Standards and choose Materials category to bring the  materials from one project to another.

You can create an element (for example a wall) with a material and copy paste from one project to another to bring the material in.

With that said, I did not do the exercise to persuade you to change the material, but to demonstrate that what you want can be done with your own material.



2. Do you suggets a fix in regard of the Spanish Tile pattern, so it gets displayed nicely?

I already had. Multiple times.  Here is it again: change the camera view from perspective view to orthographic, change the scale to a large scale such as 1:10 or 1:5, change it back to perspective, and that will fix it.






Nachricht 19 von 19
good_man_27
als Antwort auf: good_man_27

@ToanDN



I did try that, even before you suggested it, but the roof didn't change at all, while looking at it on the 3D view on Revit.



HOWEVER, this time around - now that you stressed it, and although the roof remained looking the same on Revit, I did export it as JPG. IT'S BRILLIANT!!!! Even the greyed out walls came up nice and sharp.






It seems Revit defautls the view scale to 200 when inserting a camera. Taking it down to 100 did the trick for me.



Mate, you're a legend! Thank you so very much for taking the time to follow this throuhg.
