Struggling to create this stair!

25 ANTWORTEN 25
Antworten
Nachricht 1 von 26
NP---MD
1211 Aufrufe, 25 Antworten

Struggling to create this stair!

Hello,

I'm really struggling to create this stair with the stair tool in Revit Lt 2022.

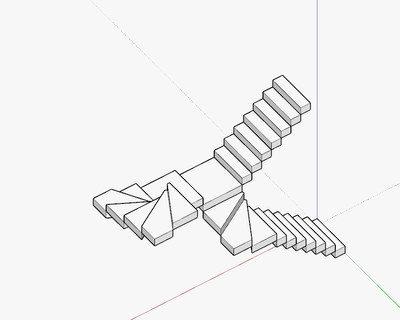

Images below:








I have no problem drawing the first flight up to the first square landing. But, I get stuck creating that first landing. I get errors saying 'cant make stair'. Through trial and error I've established that it'll work if the sketched landing is set 100mm or so away from the last riser. But, obviously i want to connect to the riser.



The other issue once I've overcome this is to do two flights going in opposite directions starting and ending at the same point. Is this possible?



I could always just create a custom family, but I wanted to persevere with the stair tool as it'll be quicker im sure in the long run if I master it.



Any tips appreciated!







25 ANTWORTEN 25
Nachricht 2 von 26
NP---MD
als Antwort auf: NP---MD


Here's an example of an error message I get

Nachricht 3 von 26
barthbradley
als Antwort auf: NP---MD

Post the file here as an Attachment to a Reply Post.

Nachricht 4 von 26
NP---MD
als Antwort auf: barthbradley

Here

Nachricht 5 von 26
barthbradley
als Antwort auf: NP---MD

Nothing posted,  but try deepening the Structural Depth.



Depth on Run.png


Nachricht 6 von 26
NP---MD
als Antwort auf: NP---MD

Sorry - here

Nachricht 7 von 26
NP---MD
als Antwort auf: barthbradley

Ah okay - will try

Nachricht 8 von 26
NP---MD
als Antwort auf: NP---MD

didn't seem to work

Nachricht 9 von 26
barthbradley
als Antwort auf: NP---MD

Still nothing is posted. Make sure it is done uploading before pressing "Post".

Nachricht 10 von 26
NP---MD
als Antwort auf: barthbradley


Surely this will work!

Nachricht 11 von 26
barthbradley
als Antwort auf: NP---MD

You sure increasing Structural Depth doesn't work?



Depth on Run 2.png

Nachricht 12 von 26
NP---MD
als Antwort auf: NP---MD

Ah, yes I increased it some more and its worked! Thanks!

Did you create that stair from on2 sketch or is it two stairs combined?

Nachricht 13 von 26
barthbradley
als Antwort auf: NP---MD

One U-Shaped and two Straight Runs up from the Landing Level.  All Sketch-Based, FWIW.

Nachricht 14 von 26
NP---MD
als Antwort auf: NP---MD

Thanks for helping Barthbradley.

Annoyingly I just can't get it to work! so frustrating, Revit doesn't give you any clues - just gives you the dumb message 'can't make stair'!



Now, I just want to make this tweak - a larger rectangular landing






I'm getting this error.








Where am I going  wrong? I've changed structural depth and it hasn't worked.











Nachricht 15 von 26
barthbradley
als Antwort auf: NP---MD

Are you creating a New Stair Instance or editing the existing Stairs and trying to add onto it.  As I said above, those are 3 separate Instances in my screenshot above - 1 U-Shaped and 2 Straight Runs.

Nachricht 16 von 26
tiho
als Antwort auf: NP---MD

You have to use two stairs to create this complex stair. One for the u-shaped stair, and a second for the flight that goes in the opposite direction.

Nachricht 17 von 26
NP---MD
als Antwort auf: NP---MD

Yes, I've been trying that.









Still no joy here. Ive tried modelling this landing as a 'landing' and as a riser as part of the same flight - neither worked.



Can anyone give me an idea of the parameters stopping it? This is now driving me crazy - I've spent almost all day trying to get this to work.





Nachricht 18 von 26
barthbradley
als Antwort auf: NP---MD


@NP---MD wrote:





Now, I just want to make this tweak - a larger rectangular landing







I'm getting this error.























Actually, I think I see what's going on in your screenshot.  No Stair Path.

Nachricht 19 von 26
ToanDN
als Antwort auf: NP---MD


@NP---MD wrote:

This is now driving me crazy - I've spent almost all day trying to get this to work.






Can you share the Revit file?

Nachricht 20 von 26
NP---MD
als Antwort auf: NP---MD

Sure - Its shared in message 10
