Structural Framing-Dimension Wood

Presently I am involved with a basement design and understand the placement of exterior and interior doors. What I am trying to do is show just the wood stud walls with no sheet rock or exterior siding attached and the spacing between each stud. Is there a way to use the Dimension Wood found in Structural Framing to create the walls without having to invest in a third party program? Where can I can that helps explain the properties so I can have a vertical stud rather than a horizontal one.

7 ANTWORTEN 7
Nachricht 2 von 8
barthbradley
als Antwort auf: KirkLB

You can do it quite easily with Curtain Walls, using Mullions for Dimension Lumber and Empty System Panels.



And/or use Beams and Columns.



CW Example:




Nachricht 3 von 8
KirkLB
als Antwort auf: barthbradley

By using this method I will be able to place windows and doors into it as well?

Nachricht 4 von 8
barthbradley
als Antwort auf: KirkLB

Sure. Frame the Opening, change the Empty System Panel in the opening to Basic Wall Type and host your Door/Window to the Basic Wall Type Panel.

Nachricht 5 von 8
KirkLB
als Antwort auf: KirkLB

Thank you for your time and help.

Nachricht 6 von 8
barthbradley
als Antwort auf: KirkLB

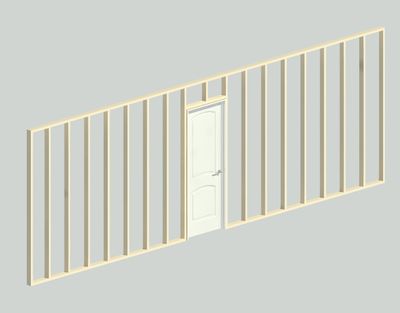

Door in Stud Wall Curtain Wall example:



Door in Stud Wall.jpg

Nachricht 7 von 8
syman2000
als Antwort auf: KirkLB

You can check this topic with some sample curtainwall framing.

https://forums.autodesk.com/t5/revit-architecture-forum/extrusion-too-thin-warnings/m-p/9923202#M306...

Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 8 von 8
KirkLB
als Antwort auf: syman2000

I do appreciate all the help I can get. This will take some time but with all the responses I believe I can make it happen
