Structural column & concrete Slab attached but line is separating between them

7 ANTWORTEN 7
GELÖST
Antworten
Nachricht 1 von 8
jkp123
769 Aufrufe, 7 Antworten

Structural column & concrete Slab attached but line is separating between them

Hey,



concrete structural column and concrete floor are joined together

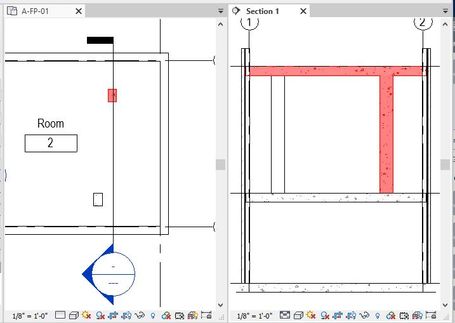

both are the same material, and yet i see a line "separating between them".

-tried different section view templates

- there are columns in my project which are fine ( connecting to the slab without this annoying separate line)



asking for your help guys,



thx in advance

7 ANTWORTEN 7
Nachricht 2 von 8
hmunsell
als Antwort auf: jkp123

is your section passing thru the column?


Howard Munsell
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.



EESignature


Nachricht 3 von 8
hmunsell
als Antwort auf: jkp123

.

Howard Munsell
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.



EESignature


Nachricht 4 von 8
barthbradley
als Antwort auf: jkp123

Are you sure you are not seeing the Level Line?

Nachricht 5 von 8
jkp123
als Antwort auf: hmunsell

yes section pass through column

Nachricht 6 von 8
jkp123
als Antwort auf: barthbradley

its not a level line ( you can see the level line in the picture above the floor)

Nachricht 7 von 8
MostafaElashmawy
als Antwort auf: jkp123

Firstly unjoin them and make sure they are detached then join them again.

Mostafa Elashmawy
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Nachricht 8 von 8
jkp123
als Antwort auf: MostafaElashmawy

it worked ...
