Stairs

18 ANTWORTEN 18
GELÖST
Antworten
Nachricht 1 von 19
zs-17
785 Aufrufe, 18 Antworten

Stairs

Hi,
I'm sketching U shape stairs as 2 straight runs in addition to 1 arc shape run, the construction concrete is available only below the last run only. How to fix this problem.
TStairs 01.jpgStairs.jpghanks

18 ANTWORTEN 18
Nachricht 2 von 19
barthbradley
als Antwort auf: zs-17

Stair by Sketch.

Nachricht 3 von 19
barthbradley
als Antwort auf: zs-17

Actually, I don't understand what you are asking. And your screenshot is too dark.  Hard to tell what you are calling out.  What to try again?

Nachricht 4 von 19
zs-17
als Antwort auf: barthbradley

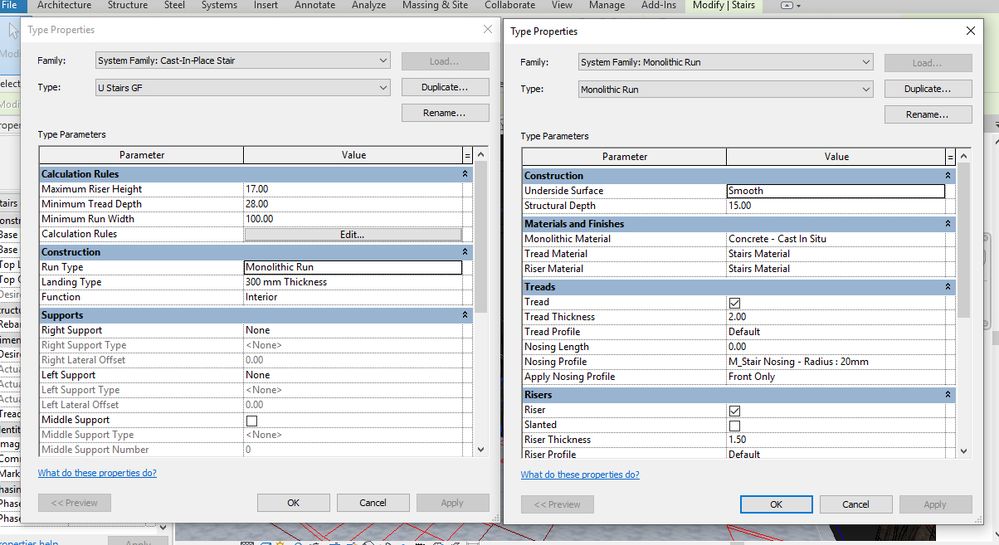

Hi, I created stairs by sketch. The stairs made of construction concrete with treads and risers. The red arrow indicates that only the last part of the stairs has construction concrete when the other parts have only treads and risers. The problem is that there is no concrete when all these 3 parts of the stairs have the same properties and it's not related to a particular view or camera.

Thank you for your support.

Stairs 3.jpg

Nachricht 5 von 19
barthbradley
als Antwort auf: zs-17

Increase the Structural Depth.







....this:



Structural Depth.png

Nachricht 6 von 19
zs-17
als Antwort auf: barthbradley

The structural depth increases the thickness of the available concrete. But it will not add concrete to the missing one

Nachricht 7 von 19
barthbradley
als Antwort auf: zs-17


@zs-17 wrote:

The structural depth increases the thickness of the available concrete. But it will not add concrete to the missing one




HUH?  I still don't understand your issue. Post the file.

Nachricht 8 von 19
zs-17
als Antwort auf: barthbradley

It's a stair without concrete

Nachricht 9 von 19
zs-17
als Antwort auf: barthbradley





Structural Depth.jpg

Nachricht 10 von 19
ToanDN
als Antwort auf: zs-17

Turn off Riser.




Nachricht 11 von 19
zs-17
als Antwort auf: ToanDN

Turn it off will show the concrete. But if I switch it on again the concrete disappears. In the end, I should turn it on for a material purpose.

Nachricht 12 von 19
barthbradley
als Antwort auf: zs-17

It's FUBAR.  It should work with both Risers and Treads.  Just re-do it.



BTW: Yours works fine if I change the Riser Thickness. Go figure.

Nachricht 13 von 19
ToanDN
als Antwort auf: zs-17

Keep Riser on and change Nosing Length to at least equal to Riser thickness.




Nachricht 14 von 19
zs-17
als Antwort auf: barthbradley

The riser thickness has no effect on my file. I will redo it later on and see if I can get a better result.

Many thanks

Nachricht 15 von 19
barthbradley
als Antwort auf: zs-17

Just tried @ToanDN's suggestion. Works like a charm.

Nachricht 16 von 19
zs-17
als Antwort auf: ToanDN

Yes this works
Best Regrads

Nachricht 17 von 19
barthbradley
als Antwort auf: zs-17

FWIW: Looks like you discovered a bone fide limitation.  This is a totally replicable phenom. Weird. But fun when you find 'em.  Now we need to find a workaround.  I mean, nosing is not acceptible to me personally.

Nachricht 18 von 19
barthbradley
als Antwort auf: barthbradley

BTW @zs-17 : I think you meant to give @ToanDN a lil' green check mark. Not two of them to me.  I appreciate the one though.  Thx. They're fun to get.





Nachricht 19 von 19
zs-17
als Antwort auf: barthbradley

I accepted both solutions. You both tried to help. It's very cheerful to find a solution.
