STAIRS PROBLEM

76 ANTWORTEN 76
GELÖST
Antworten
Nachricht 1 von 77
basma_salman
2814 Aufrufe, 76 Antworten

STAIRS PROBLEM

hello,

I am trying to create single step, but it is showing like in img below, it is extending beyond the tread,
I tried to change the connection method, the presentation is not correct

76 ANTWORTEN 76
Nachricht 2 von 77
martijn_pater
als Antwort auf: basma_salman

Not sure I've ever drawn a single step stairs:) I'm thinking maybe I wouldn't use stairs functionality for that actually, and just model it... edit: scratched last remark, using straight cut should work...

Nachricht 3 von 77
basma_salman
als Antwort auf: martijn_pater

it is not just about modeling it, I'm using stair tool so when having a section through it, the details shall be correctly represented

Nachricht 4 von 77
barthbradley
als Antwort auf: basma_salman

Are you trying to do it with or without a notch?  Without notch should be rectangular.



...Ah, I see what you're talking about. That's the Tread NOSING.



Tread Nosing.png

Nachricht 5 von 77
basma_salman
als Antwort auf: barthbradley

my problem is that the step is extending inside of the wall like in attached images

Nachricht 6 von 77
barthbradley
als Antwort auf: basma_salman

Do you also have a riser?





Nachricht 7 von 77
basma_salman
als Antwort auf: barthbradley

I need only 1 riser but my problem is with the part marked in the red circle

Nachricht 8 von 77
barthbradley
als Antwort auf: basma_salman

That doesn't make any sense me.  Almost looks like the stair is at an angle to the view.  Post the file.

Nachricht 9 von 77
basma_salman
als Antwort auf: barthbradley

I clouded the part i'm talking abt

Nachricht 10 von 77
barthbradley
als Antwort auf: basma_salman

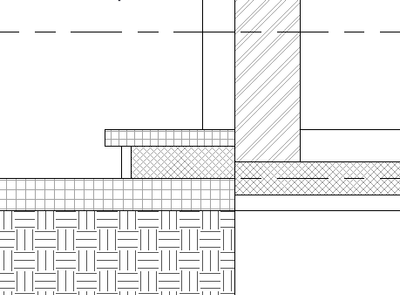

This is what I'm seeing in Section. What's not right about it?






This one? Just move the stair forward.




Nachricht 11 von 77
basma_salman
als Antwort auf: barthbradley

the treads width is not the same, one is 300 and the other is 350

Nachricht 12 von 77
barthbradley
als Antwort auf: basma_salman

...





Nachricht 13 von 77
basma_salman
als Antwort auf: barthbradley

this is not the issue, they are 2 different sizes :niedergeschlagenes_Gesicht_mit_Schweißperlen:

Nachricht 14 von 77
basma_salman
als Antwort auf: barthbradley

the width of the tread should be 300, anyways, thanks a lot

Nachricht 15 von 77
barthbradley
als Antwort auf: basma_salman

like this?






Nachricht 16 von 77
basma_salman
als Antwort auf: barthbradley

for the 2 steps yes I want it like that, but for the single step why is it extending to the inside of wall?

Nachricht 17 von 77
barthbradley
als Antwort auf: basma_salman

I must have sneezed.






Nachricht 18 von 77
ToanDN
als Antwort auf: barthbradley

Like this?



Annotation 2020-01-02 125045.jpg

Nachricht 19 von 77
basma_salman
als Antwort auf: ToanDN

yes exactly, did use cut profile tool or u actually worked with the stairs settings?

Nachricht 20 von 77
ToanDN
als Antwort auf: basma_salman

The file is there for you to look at.
