split face

Hi,



I need to split face horizontally and vertically in the same time, to have tiles.



Split face allows me only one direction / not intersecting.



Any help?




10 ANTWORTEN 10
Nachricht 2 von 11
hmunsell
als Antwort auf: 76jsa

Why...? what is it your are wanting to accomplish?

Howard Munsell
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.



EESignature


Nachricht 3 von 11
constantin.stroescu
als Antwort auf: 76jsa

is it not better to make it as a custom Curtain Wall?

Constantin Stroescu

EESignature

Nachricht 4 von 11
Anonymous
als Antwort auf: 76jsa

You can add tile lines and a map to the surface layer of the wall.  This will save the time of splitting the face and applying paint to each tile.

Nachricht 5 von 11
76jsa
als Antwort auf: Anonymous

Tiles to the surface does not work, because the divisions are not supposed to be all same.



Curtain wall doesnt work too - i have a structure wall with 4 layers. A i want to split face of the exterior one.



The goal is to divide the face of the facade to various tiles.

Nachricht 6 von 11
Anonymous
als Antwort auf: 76jsa

Do you have an image or sketch of what you're trying to achieve?

Nachricht 7 von 11
76jsa
als Antwort auf: Anonymous

rectangular tiles.

Nachricht 8 von 11
Anonymous
als Antwort auf: 76jsa

Do you have an image or sketch of what you're trying to achieve?

Are they regular?

Do they have a pattern?

Nachricht 9 von 11

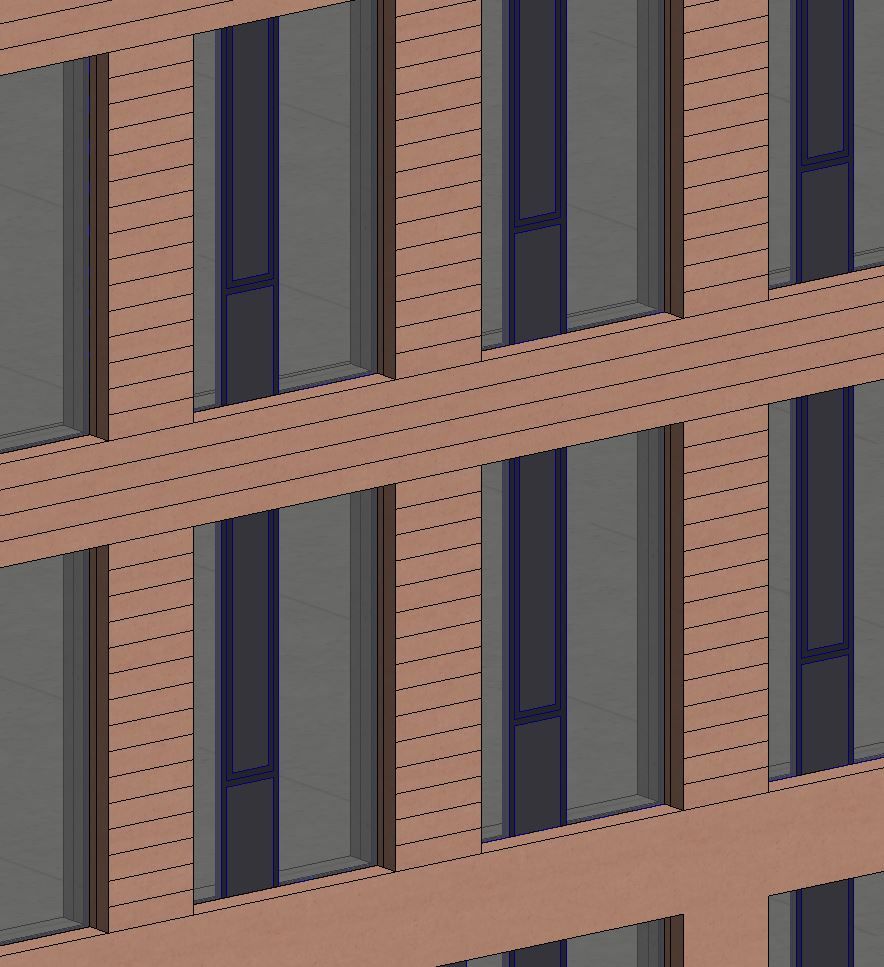

76jsa
als Antwort auf: Anonymous


Nachricht 10 von 11
Anonymous
als Antwort auf: 76jsa

I'm not sure why a tiled finish won't work from your image.

However, you can split the face of a wall into tiles.  You just need to create them individually.  This seems like a lot of work, so we need to investigate if there are easier solutions.Split face.JPG

Nachricht 11 von 11
loboarch
als Antwort auf: 76jsa

Split face tool allows you to sketch a shape on the face. it follows the same rules as sketching in Revit. YOu can darw the sketch in any direction.



http://help.autodesk.com/view/RVT/2021/ENU/?guid=GUID-C968BF26-C425-4DAE-A93E-CEDA2C1224B7



This example in the video shows sketching squares (edges are horizontal and vertical) on a wall.



Jeff Hanson
Principal Content Experience Designer
Revit Help |
