Splice , Cut or Join Vertical Mullions in Curtain Wall on desired Height

19 ANTWORTEN 19
GELÖST
Antworten
Nachricht 1 von 20
aliraza4870
6927 Aufrufe, 19 Antworten

Splice , Cut or Join Vertical Mullions in Curtain Wall on desired Height

Hi Everyone,

I am Facade Designer, and start working in Revit 2016, but facing problem when modifying curtain wall as i required, but i didn't find any options to cut, splice Mullion or joins mullions at my Desired Height of vertical mullions, i searched on Google but can't find solution.



so my request to vote for Cut, splice or Join tool for Mullions in Curtain wall at desired height for getting correct and actual Curtain wall in Drawings and schedule simultaneously.



Thanks

Engr Ali Raza

Facede Designer




19 ANTWORTEN 19
Nachricht 2 von 20
Ilic.Andrej
als Antwort auf: aliraza4870

Select the grid line and play with "Add/Remove Segments"






Andrej Ilić

phonetical: ændreɪ ilich
MSc Arch

Autodesk Expert Elite Alumni

Nachricht 3 von 20
aliraza4870
als Antwort auf: Ilic.Andrej

Dear, dr_Grozozo



If i edit Grid line it also split or join Curtain Wall Panels, which i don't want to change my panel sizes.

As u see in attd screenshot, that is the standard Exterior Curtain wall deisgn where mullion break from slab to slab, not at every horizontal mullion.



Hope u understand what my question is.




Nachricht 4 von 20
Anonymous
als Antwort auf: aliraza4870

I don't know of a way to do this currently, with only one curtain wall.

That being said, you can have 2 curtain walls, one with panels only and one for the mullions with your preferred size.





Nachricht 5 von 20
Ilic.Andrej
als Antwort auf: aliraza4870

Now I understand...Uh.... that's hard....



But do you need that for some calculations or just for graphics?



Andrej Ilić

phonetical: ændreɪ ilich
MSc Arch

Autodesk Expert Elite Alumni

Nachricht 6 von 20
aliraza4870
als Antwort auf: Ilic.Andrej

Dear, Dr. Gruzozo



I want initially both for graphics and calculation, but first priority is for Scheduling Mullion and panel sizes correctly.

Nachricht 7 von 20
aliraza4870
als Antwort auf: Anonymous

Dear, Mr. BogMatei



First How can i do it with two curtain walls?



and secondly how to join only mullions which bisect at horizontal grid, my first priority is for Scheduling Mullions and Panels.



Nachricht 8 von 20
Anonymous
als Antwort auf: aliraza4870

My mistake, I should have said nested curtain walls.



First make two curtain walls, one for vertical mullions (you can put your desired distance for the said mullions) like the one on the left in the next image and another one for your panels and horizontal mullions like the one on the right.

2 types of curtain wall.JPGThen comes the trick. In the type properties of the left wall (the vertical mullions one), choose the horizontal wall as a curtain panel.

nested curtain walls type properties.JPG





This should take care of your problem.

You shoud get this result (as you can see the vertical mullion covers 2 panels)

vertical mullion of different length.JPG

Nachricht 9 von 20
ToanDN
als Antwort auf: aliraza4870

Add a horizontal grod where the splice is. Make one row of panels empty. Edit in place the other row and make the panels fill the entire cells. It takes some effort but it can be done.
Nachricht 10 von 20
aliraza4870
als Antwort auf: Anonymous

Dear Mr. BogMatei



Thanks for giving a delightful suggestion, i follow the all procedure as you told, now for vertical mullion the problem is solved but the other problem generate that the size of horizontal mullion increase to same as panel size, actually size of horizontal mullion in between two vertical mullions, i attd the screenshot, give me a suggestion for this also.



revit 3.JPG

Nachricht 11 von 20
aliraza4870
als Antwort auf: ToanDN

Dear Mr. ToanDN



I follow the procedure as you told make a horizontal grid line and make one panel line empty but how to do Edit in place and fill panels to desired size.?? give me a screenshots if you can?

Nachricht 12 von 20
Anonymous
als Antwort auf: aliraza4870

Tick the Adjust for Mullion Size option in the vertical type to adjust the horizontal mullions.




I am getting this result on the nested wall:




Nachricht 13 von 20
ToanDN
als Antwort auf: aliraza4870

@aliraza4870
Select a panel and click Edit in place button on the Ribbon. Rinse and repeat.
Nachricht 14 von 20
aliraza4870
als Antwort auf: Anonymous

Dear Mr. @Anonymous,

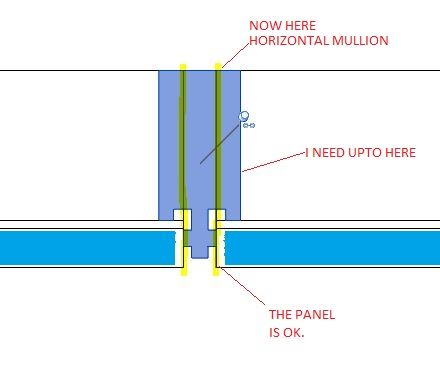

Thanks for very helpful replies but you use rectangular mullion section but i am using Profile Mullion in which panel size bigger than Horizontal Mullion, see in attd screenshot. hope u understand my problem.



revit 4.JPG



Nachricht 15 von 20
Anonymous
als Antwort auf: aliraza4870

I think I got it.

If you are using a specific profile for the mullion, go to Families - Profiles in Project Browser and either edit the type properties of your mullion and adjust the parameters so they fit with the panel or if you don't have parameters edit the profile family.



Nachricht 16 von 20
aliraza4870
als Antwort auf: Anonymous

Dear @Anonymous

is there any way to set adjust this situation, i attd the rvt file and profile family file when u r free take a look at this file, how can i manage this issue.



Thanks.

Nachricht 17 von 20
aliraza4870
als Antwort auf: ToanDN

@ToanDN



i cant find option Edit in place??

Nachricht 18 von 20
ToanDN
als Antwort auf: aliraza4870

@aliraza4870



Select a panel, unpin if it is pinned, then you can see Edit in place option. I only tried with system panels so I am not sure if it works with cystom panels.





Nachricht 19 von 20
aliraza4870
als Antwort auf: ToanDN

Thanks for Everyone....

Nachricht 20 von 20
shane109
als Antwort auf: Anonymous

So i keep trying the nested horizontals into the vertical mullion curtain wall.  i can get that to work, but i still can't get the horizontal mullions to cut back to the vertical mullions (i have tried what feels like every combination of adjust for mullion size)  What am i doing wrong?  is there a specific order?  i would assume i could check this at any point and it would update the curtain wall, but its not
