Spaces are being subtracted from Room placement

15 ANTWORTEN 15
GELÖST
Antworten
Nachricht 1 von 16
sandeep.gill28G3N5
732 Aufrufe, 15 Antworten

Spaces are being subtracted from Room placement

Hello Autodesk,

We have a strange situation happening in one of our file with ROOMS and SPACES.

I am trying to place a ROOM once I have made the ROOM SEPERATORS. Below is the sketch of the ROOM SEPERATORS:





When I try and place the ROOM inside, the ROOM does not follow the SEPERATOR lines and is SUBTRACTING the SPACES that have been placed during an earlier period of the project. See below:



Any idea as to what causes this and how it can be solved?

Many thanks for any inputs!


15 ANTWORTEN 15
Nachricht 2 von 16
RDAOU
als Antwort auf: sandeep.gill28G3N5

@sandeep.gill28G3N5



What is causing this are the bounding elements or room separations from the previous/existing phase

  • If the rooms from the previous/Existing phase are supposed to be gone in the new phase then you should select those elements or room separators and set them to be demolished in the New Phase





YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 3 von 16

Hello again,
So I have gone into the file again, Please see below:

All bounding lines for the SPACES are selected and the PROPERTIES for PHASES
Phase created: New Construction
Phase demolished: None



Same for the SPACE separator lines:



So both types of elements share the same phasing as I see.

Same if I change all the bounding lines to EXISTING:



Is there any other thing I can try to get the ROOM to not show these subtractions caused by the SPACES?





Nachricht 4 von 16
ToanDN
als Antwort auf: sandeep.gill28G3N5

Try cut and paste aligned in place the space separation lines.

Nachricht 5 von 16
sandeep.gill28G3N5
als Antwort auf: ToanDN

Hey again,

I have removed the SPACE seperator lines and then also the SPACES.

I then PASTE ALIGNED TO SAME PLACE and the ROOM is now 'to normal'



However, since the spaces had to be deleted, I have no longer the info that was associated with the SPACES.

is there anything else I can try so I can avoid to re-doing the spaces?

Nachricht 6 von 16

I have shared the file here if you would like to test and try.

Any method that can solve without having to delete elements would be greatly appreciated!

Regards

Nachricht 7 von 16
ToanDN
als Antwort auf: sandeep.gill28G3N5

Cut and paste aligned in place Space Separation Lines only, not Spaces.  It fixed the Room issue while keeping all the space data intact.










Nachricht 8 von 16
sandeep.gill28G3N5
als Antwort auf: ToanDN

Hey again!

Thanks a lot!

If I understand correct, I am copying and pasting the SPACE SEPARATORS, and this will mean that I have OVERLAPPNG lines for the SPACE SEPERATOR right?

If so, is there a quick command to remove overlaps like OVERKILL command in Autocad?

Many many thanks for your help!

Nachricht 9 von 16
ToanDN
als Antwort auf: sandeep.gill28G3N5


@sandeep.gill28G3N5 wrote:

Hey again!

Thanks a lot!

If I understand correct, I am copying and pasting the SPACE SEPARATORS, and this will mean that I have OVERLAPPNG lines for the SPACE SEPERATOR right?


No.  Cut and Paste, not Copy and Paste.

Nachricht 10 von 16
sandeep.gill28G3N5
als Antwort auf: ToanDN

Sorry for my lack of knowledge here.......

could you show me that command please?

Nachricht 11 von 16
ToanDN
als Antwort auf: sandeep.gill28G3N5

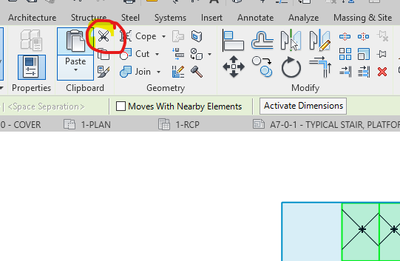

See button below.  When you cut the lines, Revit will ask you if you want to delete the spaces, answer NO, do not delete them.






Nachricht 12 von 16
ToanDN
als Antwort auf: sandeep.gill28G3N5
Nachricht 13 von 16

EXCELLENT!

Thanks so much!!

Nachricht 14 von 16

Hello there,

Can I ask, where do you get the mouse to show the buttons being pressed in the video?

I could really benefit from this!

Any help would be greatly appreciated!

Nachricht 15 von 16
ToanDN
als Antwort auf: sandeep.gill28G3N5


@sandeep.gill28G3N5 wrote:

Hello there,

Can I ask, where do you get the mouse to show the buttons being pressed in the video?

I could really benefit from this!

Any help would be greatly appreciated!


Those are generated by the screencast recording software.

https://knowledge.autodesk.com/community/screencast

Nachricht 16 von 16

Hello once again!

Sorry for opening this again - I have this issue recurring and I am looking for a deeper understanding here.

Is there anyone who can help?
