Snapping to .sat import not working

24 ANTWORTEN 24
GELÖST
Antworten
Nachricht 1 von 25
info
1532 Aufrufe, 24 Antworten

Snapping to .sat import not working

Hello,



In revit 2021 and before we imported a .sat file in a Metric Generic Model family to use it in a rvt file

In the moment we can't snap to the imported  3D shape anymore. Is there something changed in Revit.

When we open a rfa from a old file whe can snap the shape. When we import the same .sat file in the same rfa family whe can't snap anymore to the new import but still to the old import.



Are we missing a setting in Revit to put the snaps on  for the new import







24 ANTWORTEN 24
Nachricht 2 von 25
RDAOU
als Antwort auf: info

@info



Nothing should have changed



  • What do you mean by snap to exactly?
  • Is it the same .sat file you are using in both versions of Revit or are they 2 different ones?



Are you able to share the file?



YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 3 von 25
info
als Antwort auf: RDAOU

Thanks for the reply



We tested and opened a old file with snapping possibillities and imported te same .sat file again.

The new imported sat shape will not snap  anymore in the rfa





Nachricht 4 von 25
syman2000
als Antwort auf: info

Can you upload the SAT file sample so we can test them out?

Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 5 von 25
info
als Antwort auf: syman2000

RFA from Revit 2021 with snap

RFA with same sat shape and no snap

And the sat files provided by https://www.pitzl-connectors.com/

Nachricht 6 von 25
ToanDN
als Antwort auf: info

I tried import the same SAT in Revit 2012 and Revit 2022 and they do show differently.  Revit 2019 show it non-faceted and Revit 2022 show it faceted.  Following.

Nachricht 7 von 25
syman2000
als Antwort auf: info

Very interesting. Revit 2018-2020 shows up differently and it is snappable. While 2021-2022 shows faceted and non-snappable. Perhaps this is internal Autodesk Revit dev team need to look at.






Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 8 von 25
info
als Antwort auf: syman2000

For testing we imported the sat file in Autocad and  exported this to dwg and dxf.

Imported this files in Revit but  also no snappoints available in 2022.



If someone has a solution we are anxious for the solution. We need the working sat files  for a new work

Solution  for the moment is to use Revit 201,2019 or 2020  for the import ?

We have installed 2021 and 2022 in the moment.



Thanks in advance





Nachricht 9 von 25
RDAOU
als Antwort auf: info

@info



What is there for Autodesk to look into? ...Try the Attached Family



Edit: I am guess you have exported the SAT as an assembly.... An alternative to SAT export you can try to Export BIM Object. Those should snap without any added effort







SAT Snap.gif

YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 10 von 25
info
als Antwort auf: info

Perfect RDAOU, just like we are used to in the old rfa.

Can we get this when we import the sat files in Revit 2021 or 2022 or do we have to use R19 or R20.

We are not getting it working here in R21 and R22







Nachricht 11 von 25
RDAOU
als Antwort auf: info

@info



Yes this is an SAT from inventor imported into Revit 2022...The issue is in how how you exported the SAT from inventor.



First instead of SAT try to Export as BIM Content >>> Building Component  and see if that works for you...(This will export the Brackets as a .ipt import into  .rfa family which will be a snap-able object) Sample .rfa is attached








Snap BIM Component.gif





YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 12 von 25
info
als Antwort auf: info

We just dowloaded the sat  files from this

website https://www.pitzl-connectors.com/produkte/produktliste/88318.2000

This is the one we need in the moment by the way. Also not working



also tried  sat files from

https://www.strongtie.nl/nl-NL/producten/bretelbeugel-ag703#5

Not working also

We don't use/have Inventor so we have to use this files.

Is there a non Inventor way..



Nachricht 13 von 25
ToanDN
als Antwort auf: info


@info wrote:



Is there a non Inventor way..




You can insert the SAT file in AutoCAD, save it to DWG, then import the DWG in the Revit family.






Nachricht 14 von 25
info
als Antwort auf: info

We tried this :enttäuschtes_Gesicht:

in Autocad ADT export to DWG

Same result in the pitzl file also no snapping

Before it was just working fine

Revit must have changed something then

Nachricht 15 von 25
RDAOU
als Antwort auf: info

@info



Well the .sat you attached are from inventor...



Anyways...Continue importing the SAT into Revit 2020 save and then upgrade the .rfa to 2022!! Es soll dann in 2022  genau so wie in 2020 fonktionieren










YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 16 von 25
ToanDN
als Antwort auf: info


@info wrote:

We tried this :enttäuschtes_Gesicht:

in Autocad ADT export to DWG

Same result in the pitzl file also no snapping

Before it was just working fine

Revit must have changed something then


Insert the original SAT in AutoCAD > Export it to a new SAT > Import the new SAT in Revit family.











Nachricht 17 von 25
info
als Antwort auf: info

For a quick and dirty solution the way to go indeed.

Installing Revit 2020 again is a bit backward

Maybe Autodesk is paying attention and will repair the sat import





Nachricht 18 von 25
RDAOU
als Antwort auf: info


@info wrote:

For a quick and dirty solution the way to go indeed.

Downloading Revit 2020...;-(

Maybe Autodesk is paying attention




@info



Lieber AutoCAD? but not what Toan suggested that wont work







YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 19 von 25
ToanDN
als Antwort auf: info


@info wrote:

For a quick and dirty solution the way to go indeed.

Installing Revit 2020 again is a bit backward

Maybe Autodesk is paying attention and will repair the sat import






How about install AutoCAD instead?

Nachricht 20 von 25
RDAOU
als Antwort auf: ToanDN

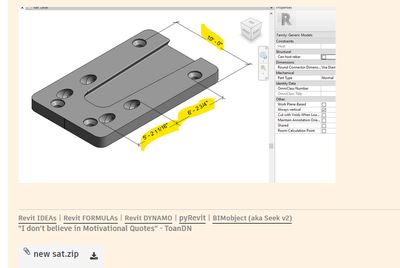

Hard to miss this one...did you not notice something a little bit off when you placed those dimensions?






YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION
