Sloping Wall for Skylight

7 ANTWORTEN 7
Antworten
Nachricht 1 von 8
BugFinder
758 Aufrufe, 7 Antworten

Sloping Wall for Skylight

I have a skylight in the roof which has a casement (not sure of the correct name) which leads down to the ceiling.

I would like to know how to create a sloping wall perpendicular to the roof as in the image below:

Sloped Wall.PNG

I need to create the wall where the red lines are shown and connect side walls to it.  Note: I haven't created the cutout in the ceiling yet!!



Revit file is atttached.



Thanks

7 ANTWORTEN 7
Nachricht 2 von 8
barthbradley
als Antwort auf: BugFinder

Use the Roof Tool to create this wall.





Nachricht 3 von 8
barthbradley
als Antwort auf: BugFinder

...or Mass the opening and use the Wall by Face tool to create Walls.




Nachricht 4 von 8
martijn_pater
als Antwort auf: BugFinder

If it's just this wall you could also model it in-place under wall category, multi-layered/parametric if you like...

Nachricht 5 von 8
BugFinder
als Antwort auf: barthbradley

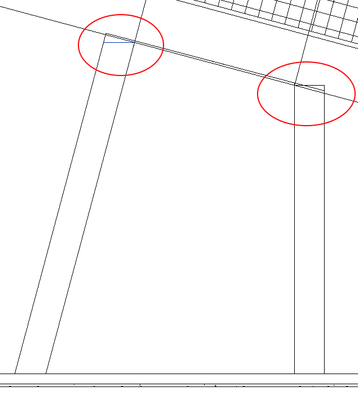

@barthbradleyI've managed to get the walls as you suggested using the mass and the wall by face tool but I'm left with the following where the walls don't meet the roof:

Edges 1.PNG

Edges 2.PNG

Now, normally I'd use the attach top/base tool but this does not appear as an option for me; I suppose it is due to the way it was created.

Are there any tools which would fix this issue?



Thanks

Nachricht 6 von 8
ToanDN
als Antwort auf: BugFinder

Join geometry the wall and the roof.
Nachricht 7 von 8
barthbradley
als Antwort auf: BugFinder

I would edit the Mass and make it taller (start it from top surface of Roof), Update to Face the Walls, and then In-Place Model a Void Extrusion to cut all the Walls flush to the bottom surface of the Roof.

Nachricht 8 von 8
BugFinder
als Antwort auf: barthbradley

@ToanDNI tried your suggestion to Join geometry but nothing happened - the walls remained in the same place so was left with trying barthbradley's suggestion...



@barthbradleyI was really struggling with editing the mass as it didn't want to play nicely but eventually got there after starting again.  Once I put the walls on it, it came out like this:

Edited Mass.png

with errors saying it couldn't keep the walls joined. What would you normally do here?



Thanks
