sloped wall with sweep

4 ANTWORTEN 4
GELÖST
Antworten
Nachricht 1 von 5
Anonymous
5114 Aufrufe, 4 Antworten

sloped wall with sweep

I created a wall type with sweep profile but I need a sloped wall how can I create sloped wall when I try edit profile the sweep disappears.I am adding caps and revit file thank you



revit file:

https://drive.google.com/file/d/0B5mTh8hHmMpbd1JxTFpTWndIVDg/view?usp=sharing



4 ANTWORTEN 4
Nachricht 2 von 5
jrfrost
als Antwort auf: Anonymous

So you want the the profile swept along the top of the wall, which is sloping? Wall sweeps can only be horizontal or vertical, they can't slope. You'll have to edit the profile of the wall to slope, and then use a "Model-in-Place" family for the sweep. After you've changed the profile of your wall to be the way you want it. Select "Model-in-Place" choose "Sweep" and then choose "Pick 3D Edges". Select the sloping wall, load or draw the profile, and you're done.

Nachricht 3 von 5
cbcarch
als Antwort auf: Anonymous

You could also create a Floor or Roof with the sloping geometry for the wall cap and then attached the wall to it.

Cliff B. Collins
Registered Architect The Lamar Johnson Collaborative Architects-St. Louis, MO
Nachricht 4 von 5
Anonymous
als Antwort auf: jrfrost

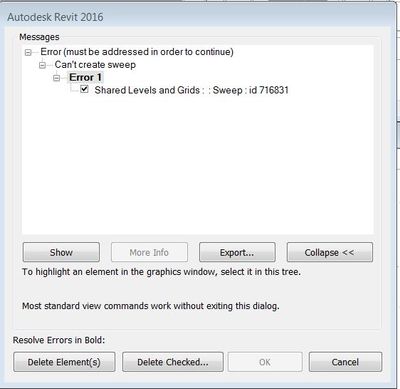

I've followed your instructions above and keep getting the can't create sweep message? See screenshots below.








Nachricht 5 von 5
Anonymous
als Antwort auf: Anonymous

Nevermind figured out the problem.
