Slanted Wall with Edited Profile in Revit LT

10 ANTWORTEN 10
GELÖST
Antworten
Nachricht 1 von 11
BigPicture045
1267 Aufrufe, 10 Antworten

Slanted Wall with Edited Profile in Revit LT

See the slanted wall below:






Now view it from an angle:






I need to edit the profile of this wall so that it has a similar angle as the columns you see next to it. I need it to be like this when viewing it from the side elevation:






However, when adding a slant to a wall with an edited profile I am getting the following message that does not allow me to do this:




I am using Revit LT.



10 ANTWORTEN 10
Nachricht 2 von 11
barthbradley
als Antwort auf: BigPicture045

I've never encountered that error.  The Profile is doable though. Do you have all four sketch lines?



Slanted Partition.jpg

Nachricht 3 von 11
BigPicture045
als Antwort auf: barthbradley

@barthbradley Just verifying, once you edit the wall profile, are you able to add a slant to it?

Nachricht 4 von 11
barthbradley
als Antwort auf: BigPicture045

Yah...and attach it to a roof afterwards via the Attach Top/Base tool.

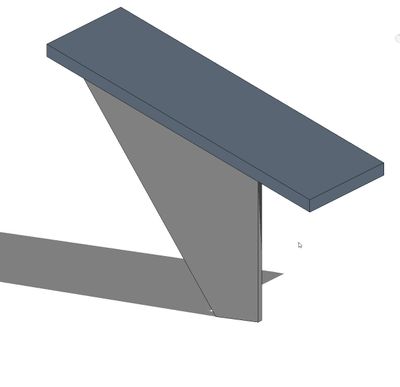

Slanted Partition 2.jpg







Nachricht 5 von 11
barthbradley
als Antwort auf: BigPicture045

here's the Profile for that wall:



Slanted Partition 3.jpg

Nachricht 6 von 11
BigPicture045
als Antwort auf: barthbradley





@barthbradley



See the video below for replicating the error message and for the workaround I used.



Edit: How do I get the embedded video to work here?











https://autode.sk/2KM9mAF







Nachricht 7 von 11
barthbradley
als Antwort auf: BigPicture045

Ah! 2021 Slanted Wall!  I see now what you are trying to do? I can't do it either.



Slanted Wall.jpg



What about Cutting the Angle with an In-Place Void?





Nachricht 8 von 11
barthbradley
als Antwort auf: BigPicture045

Slanted Side.jpgSlanted Front.jpgSlanted 3d.jpg

Nachricht 9 von 11
BigPicture045
als Antwort auf: barthbradley

I don't believe in-place void is available in Revit LT.

Nachricht 10 von 11
barthbradley
als Antwort auf: BigPicture045

Model the Void in a Family then.  Check "Cuts With Void When Loaded".

Nachricht 11 von 11
barthbradley
als Antwort auf: BigPicture045

Smart workaround though.  :zwinkerndes_Gesicht:
