site image material is mirrored on topography

15 ANTWORTEN 15
Antworten
Nachricht 1 von 16
jasonmazis
497 Aufrufe, 15 Antworten

site image material is mirrored on topography

I have created a topography and I keep trying to put an aerial view image of the site from google earth as  the material.  But whatever image i place on the site become inverted or mirrored when on the texture.

jasonmazis_0-1654712893320.pngbelow is the image



 Any help is appreciated as this fairly urgent.

Thank you

15 ANTWORTEN 15
Nachricht 2 von 16
barthbradley
als Antwort auf: jasonmazis

How are you applying the Material?  That is, what element is using it?

Nachricht 3 von 16
GustavoUbriaco
als Antwort auf: jasonmazis

Hi

what happens when you rotate the material?




Gustavo Ubriaco Contreras
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Nachricht 4 von 16
jasonmazis
als Antwort auf: GustavoUbriaco

It flips in other directions  no matter which way i rotate it it will not match the original

Nachricht 5 von 16
jasonmazis
als Antwort auf: barthbradley

topography- | first duplicated the site material which was grass and changed it. ten I made a new material

Nachricht 6 von 16
barthbradley
als Antwort auf: jasonmazis

Did you uncheck Bump and other Images?

Nachricht 7 von 16
jasonmazis
als Antwort auf: barthbradley

yes all unchecked

Nachricht 8 von 16
jasonmazis
als Antwort auf: jasonmazis

would it be possible to do a team viewer or anydesk

Nachricht 9 von 16
barthbradley
als Antwort auf: jasonmazis

Are you sure it's being inverted and not just oriented to True North?

Nachricht 10 von 16
barthbradley
als Antwort auf: jasonmazis


@jasonmazis wrote:

would it be possible to do a team viewer or anydesk




Just post the RVT along with the PNG and we'll test.



But for the life of me, I can't even get a PNG to invert no matter how hard I try.




Nachricht 11 von 16
jasonmazis
als Antwort auf: jasonmazis

It comes in as an exact mirror

Nachricht 12 von 16
barthbradley
als Antwort auf: jasonmazis

Mirrored or inverted?  Two different things.



Just post your two files as I suggested above.  Otherwise, it's just a guessing game.

Nachricht 13 von 16
GustavoUbriaco
als Antwort auf: jasonmazis

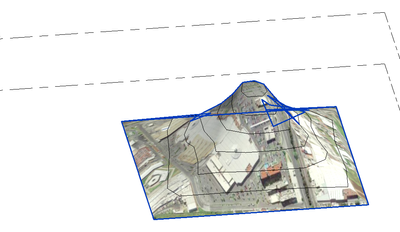

I think this happens because the topography is an irregular shape

try to edit that topo surface to make it rectangular.



then te scale have to be the same, this is only an example






Gustavo Ubriaco Contreras
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Nachricht 14 von 16
ToanDN
als Antwort auf: jasonmazis

As a test, apply the same material on a floor and see if it comes out correct.

Nachricht 15 von 16
barthbradley
als Antwort auf: jasonmazis

Try rotating the image slightly 0.1 degree.

Nachricht 16 von 16
jasonmazis
als Antwort auf: jasonmazis

Hi with a whole host of rotating and a mirror of the image in Photoshop I seem to have got the correct angle no I am just trying to resize it accurately thank you for your help.
