show Frame of viewport

14 ANTWORTEN 14
GELÖST
Antworten
Nachricht 1 von 15
k.ronniger
1943 Aufrufe, 14 Antworten

show Frame of viewport

Hello members of autodesk forum,



I use Revit 2021.1.6 and I create a plan with some viewports of section views. Now the frames of these viewports are not visible. What can I do to make the frames of these viewports visible? Thanks in advance.

14 ANTWORTEN 14
Nachricht 2 von 15
ToanDN
als Antwort auf: k.ronniger

Show Crop region from properties.

Nachricht 3 von 15
k.ronniger
als Antwort auf: ToanDN

Hello ToanDN,



attached you will find the crop region from the properties of the viewport. Its in german.




Nachricht 4 von 15
k.ronniger
als Antwort auf: ToanDN

Hello ToanDN,



I changed my language in Revit into english. Now the crop region from the properties of the viewport in english.




Nachricht 5 von 15
ToanDN
als Antwort auf: k.ronniger

Tick the box Crop Region Visible.

Nachricht 6 von 15
k.ronniger
als Antwort auf: ToanDN

Hello ToanDN,



thanks for your answer. Yes I checked the checkbox "Crop Region Visible". But no frame is shown.

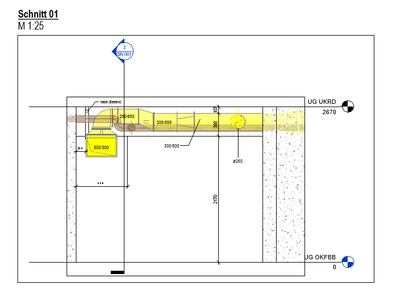

I attached a screenshot from the present layout:


and a screenshot with the activated and visible Crop Region Lines:




and the desired layout with a constructed frame by detail lines:


But nevertheless its much more faster and comfortable to use a build in function wich is doing this work automaticely, if is available.

Nachricht 7 von 15
ToanDN
als Antwort auf: k.ronniger

Only View Crop Region can be visible. Annotation Crop cannot be visible unless you highlight the view crop.

Nachricht 8 von 15
k.ronniger
als Antwort auf: ToanDN

OK. Thanks for your answer. Maybe theres an option for it in dynamo. I stay tuned.



Nachricht 9 von 15
ToanDN
als Antwort auf: k.ronniger


@k.ronniger wrote:

OK. Thanks for your answer. Maybe theres an option for it in dynamo. I stay tuned.




If the frame dimensions are fixed (or standardized), you can add it to the View Title Family, create different View Title types for different sizes.

Nachricht 10 von 15
k.ronniger
als Antwort auf: ToanDN

Sounds good. In that case is an option for making the frame visible available?

Nachricht 11 von 15
ToanDN
als Antwort auf: k.ronniger


@k.ronniger wrote:

Sounds good. In that case is an option for making the frame visible available?


Yes.  Because the frame is drawn in the View Title family so it is Visible unless you want it not to.  Optionally, you can assign a visibility parameter to the frame and and create a type with it visible and a type with it invisible.

Nachricht 12 von 15
k.ronniger
als Antwort auf: ToanDN

Yes.  Because the frame is drawn in the View Title family so it is Visible unless you want it not to.  Optionally, you can assign a visibility parameter to the frame and and create a type with it visible and a type with it invisible.

And which frame you mean especially? Is it the frame from the viewport?

Nachricht 13 von 15
ToanDN
als Antwort auf: k.ronniger


@k.ronniger wrote:
Yes.  Because the frame is drawn in the View Title family so it is Visible unless you want it not to.  Optionally, you can assign a visibility parameter to the frame and and create a type with it visible and a type with it invisible.

And which frame you mean especially? Is it the frame from the viewport?


No. It is the box drawn in the View Title Family.

Nachricht 14 von 15
k.ronniger
als Antwort auf: ToanDN


No. It is the box drawn in the View Title Family.

Thanks. But when I click on the button "Edit Type" in the family "Viewport" there is no option for the frame. Enclosed I attached a screenshot of the window which is shown when I was clicking on the button "Edit Type".






Where especally I found the option you mentioned?



Nachricht 15 von 15
k.ronniger
als Antwort auf: ToanDN

Thanks. That was the solution.

Is it possible to assigne the new created view title family typ by standard? Thanks in advance.
