Section Tag - changing both head & tail

[dariawerynska]

Hi there!

I'm browsing and browsing and still can't find the way.

I want to change the whole Section Tag, not just the Head or the Tail. I need one set of Head&Tail for vertical and one set Head&Tail for horizontal respresentation. How do I do this? Where can I change this Section Tag settings? 😑

[XXalessio.amodioXX]

Make a new family>Annotation>Section Head

[L.Maas · Accepted solution]

Default Section

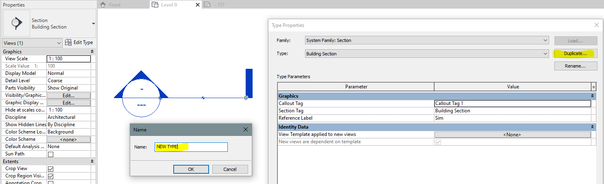

Duplicate that type and give it a new name

With the new type select the section tag

When selected also duplciate this Section Tag

Give it a new name and select other section head and section tail

The End Result

Further modifications?

These section head and section tail are loadable families and can be found in your family browser. You could edit them to your liking

[constantin.stroescu · Accepted solution]

• select the Section Line >Properties>Edit Type>Type Properties > Building Section > Section Tag

• Open the Type pull down options

• Expand Section and then Section Tail options

• if you want to change to a custom symbol and Label , then go (in Project Browser) to Families:

• select the Family you want to edit : Right click and choose Edit:

• The Family Editor opens , and you are able now to modify either Symbol or Label ...or both of them as you like

• from here you are able to manage the Label:
