Seamless corrugated roofing

6 ANTWORTEN 6
GELÖST
Antworten
Nachricht 1 von 7
abraham.tolentinoBFJ37
474 Aufrufe, 6 Antworten

Seamless corrugated roofing

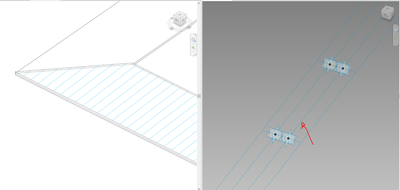

Can anyone tell me how to create a seamless corrugated roofing, there seems to be a problem at the corner area of my roofing; even after unpinning it, I tried to change the model element but it doesn't seem to change at all.

6 ANTWORTEN 6
Nachricht 2 von 7
ToanDN
als Antwort auf: abraham.tolentinoBFJ37

Custom panels cannot be used for no rectangular shapes.  There are workarounds:

  1. Edit the sloped glazing to use only mullions for corrugated.
  2. Model sloped glazing rectangular shapes and use solid form mass to cut them to different shapes.
  3. Create a mass, divide surface and apply a curtain panel pattern based to create the corrugated roof.
  4. Create a basic roof and assign a material with a corrugated surface pattern and texture.
Nachricht 3 von 7

you can do it , also , by creating two Families:

one for the rectangular corrugated sheet and the other one as a Void , and Cut the Sheet in the Project:









then create the Void parametric family





Constantin Stroescu

EESignature

Nachricht 4 von 7
skyeg321
als Antwort auf: abraham.tolentinoBFJ37


Nachricht 5 von 7
abraham.tolentinoBFJ37
als Antwort auf: ToanDN


Thank you but how do you the make the corrugated panel inside curtain based panel family. I have attached a cad file for my corrugated profile.

Nachricht 6 von 7

Thank you I was able to make the roofing but I'm also curious of other solutions like the use of mass families.

Nachricht 7 von 7

Hi @abraham.tolentinoBFJ37,



Thank you for posting. It looks like @constantin.stroescu has provided you with the steps to create a seamless corrugated roofing, so for now I am going to mark this as "Solved." This won't prevent other folks from commenting on this question though in the event other ideas come up!

Remember, marking your posts as having an accepted solution really helps out other forum users that have the same issue – so don’t be shy about marking it as a solution! Accepted solutions get viewed more and help more users find the answer to their problems.


If the solution did not work, you can unmark the post as an accepted solution. To cancel an accepted solution, click the ellipsis menu  > Not the Solution.




Wendy Lim

Data Nerd | Community Advocate | AEC Industry
