scattered  elevation symbols

hi



im new to REVIT



in Autocad we used to place the elevation symbols at different location all around the drawing,

in REVIT as i see the elevation symbol are long horizontal line across the whole model



is there a way to place elevation symbols all around and retain their Z information?



see what we used to do so far with Autocad[image]



Using Autocad 2018, Autocad Architecture.
Please accept as solution if i solved your problem
8 ANTWORTEN 8
Nachricht 2 von 9
Sahay_R
als Antwort auf: Shay.Gaghe

Spot elevation symbols. Click on the Annotation tag



If you need the tag to look the way that it was in AutoCAD - open the Spot Elevation tag out of the OOTB library - and add the geometry to the tag.


Rina Sahay
Autodesk Expert Elite
Revit Architecture Certified Professional

If you find my post interesting, feel free to give a Kudo.
If it solves your problem, please click Accept to enhance the Forum.
Nachricht 3 von 9
MostafaElashmawy
als Antwort auf: Shay.Gaghe

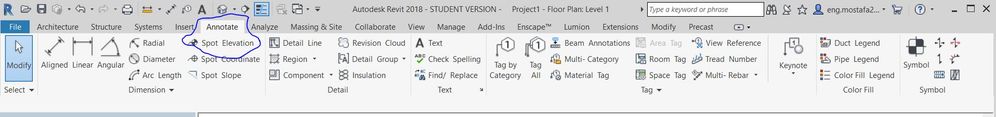

use below tool.




Mostafa Elashmawy
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Nachricht 4 von 9
Shay.Gaghe
als Antwort auf: Shay.Gaghe

hi

following the spot elevation tool , i have some farther questions,



1. I've spot elevated some places in the elevation, i'm expecting to see those corresponding elevation numbers in the plan view as well, but i cant see them.

2.how can i define the spot elevation tool to be fixed by one click (instead of the default of three clicks)





Thanks in advance

Shay

Using Autocad 2018, Autocad Architecture.
Please accept as solution if i solved your problem
Nachricht 5 von 9
Shay.Gaghe
als Antwort auf: Sahay_R

what you mean by "Elevation tag out of the OOTB library"?

Using Autocad 2018, Autocad Architecture.
Please accept as solution if i solved your problem
Nachricht 6 von 9
Anonymous
als Antwort auf: Shay.Gaghe

OOTB = Out of the box



They are referring to the annotations in your default library location:

Libraries\US Imperial\Annotations

Nachricht 7 von 9
Shay.Gaghe
als Antwort auf: Anonymous

can you help about the other question as well?

Using Autocad 2018, Autocad Architecture.
Please accept as solution if i solved your problem
Nachricht 8 von 9
Sahay_R
als Antwort auf: Shay.Gaghe

If you can't see the tags in the view, then check the visibility settings under VG>>Annotation Symbols (or in the View template, as the case may be). Make sure that the category is checked.



A simple way to make this operation click-efficient would be to place one tag, and then copy it (hold down CTRL and drag) to wherever you need. It will read whatever value there is. Or else use Spot Slopes.






Rina Sahay
Autodesk Expert Elite
Revit Architecture Certified Professional

If you find my post interesting, feel free to give a Kudo.
If it solves your problem, please click Accept to enhance the Forum.
Nachricht 9 von 9
Anonymous
als Antwort auf: Sahay_R

@Shay.GagheRemove the leader to remove a click?



Uncheck the "Leader checkbox" at the top left menu bar when placing he tag to do this.
