Hello there,
I am trying to rotate an entire model in Revit about 25 degrees to make it align with a terrain site plan. I have tried 'create group' and'create instance' but several elements of the model such as oblique beams and balconies rotate in a wrong way. I have also tried rotating the view but this method is only view specific and when I try to copy paste the view it pastes as normal, not rotated. Is there a simple method to do this?
Gelöst! Gehe zur Lösung
Gelöst von syman2000. Gehe zur Lösung
Gelöst von RDAOU. Gehe zur Lösung
If you want to be exact, the model should be to True north and so should be the terrain. True north can be changed in a plan view. So leave the model alone, and make true north be correct. then rotate the terrain to also be correct north.
@Anonymous
Depending on how you modeled the whole thing...Building and Toposurface in separate models or in the same model...
If in separate models, you simply rotate and align the link and publish coordinates to link if you are using shared coordinates
If in the same model,
YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION

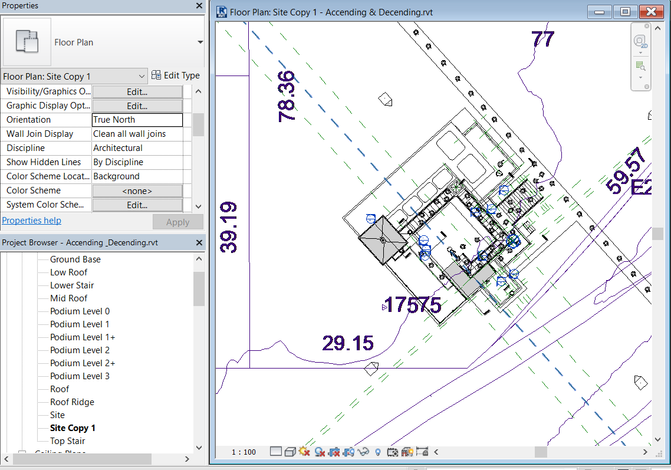

Nothing seems to work. I have tried most things. So the project is in one file and the site topography is in a separate file. I did manage to change the orientation of true north on the project file but when I try to copy it across to the topography site file it doesn't copy with the true north slanted orientation. I have inserted the two image in this message for your consideration.
I would appreciate if you could guide me.
Nothing seems to work. I have tried most things. So the project is in one file and the site topography is in a separate file. I did manage to change the orientation of true north on the project file but when I try to copy it across to the topography site file it doesn't copy with the true north slanted orientation. I have inserted the two image in this message for your consideration.
I would appreciate if you could guide me.
You can do it the other way round too if you started with setting out the building model
YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION
I would go against rotating building to fit the site plan. It should be the other way around. First you set your project to true north
Next select rotate to true north
You should be able to toggle between true north and project north.
If you don't want to mess this up, you can setup scopebox. Rotate the scopebox by 25 degree to reflect where you want to rotate the view. Then set the view to scope box and it will automatically rotate your plan.
