Room tag and walls bounding

Hello guys, I am facing a weird problem about room boundaries in my file, I just created a room tag with the formulas to have the room width and length automatically, anyway, I am having a problem recently that some rooms are not showing the exact length and width for a mysterious cause!

any way to fix that!

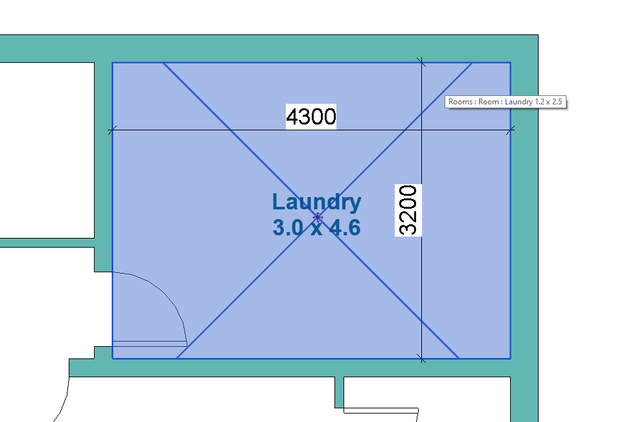

Here is the issue.




5 ANTWORTEN 5
Nachricht 2 von 6
barthbradley
als Antwort auf: ayman_tamimi

Is this what you did?



2 Calculated Parameters in the Tag:



Room Length: ((Perimeter / 2) - sqrt((Perimeter / 2) ^ 2 - 4 * Area)) / 2
Room Width: Area / Room Length





...if so, my guess would be that Unit Rounding is causing discrepancy.

Nachricht 3 von 6
ayman_tamimi
als Antwort auf: barthbradley

Yes exactly, but in some cases, I am having a huge difference from the real dimensions!

for example here:




Nachricht 4 von 6
DalskiSelecta
als Antwort auf: ayman_tamimi

Hover over & take a snapshot to see if it's bounding at the internal wall face/ external wall face/ beam or different floor make-up causing a different grabbed area. My guess is joined geometry or something of that nature.

Nachricht 5 von 6
ayman_tamimi
als Antwort auf: DalskiSelecta

Well, it might be, I've tried to use a room seperator all around the room, and then it works perfectly, so what do you think is the reason behind it?





this is a picture without a room separator:






Nachricht 6 von 6
ToanDN
als Antwort auf: ayman_tamimi

Open Room Area computation settings and set Computation to Wall Face instead of Wall Center.
