room on 2 level

hello

I have an example of a staircase that turns 90 degrees between levels. however, I would like the room to be in both volumes. I tried with a volume room calculation, but it only works partially. do you have a suggestion?



thks






22 ANTWORTEN 22
Nachricht 2 von 23
GustavoUbriaco
als Antwort auf: Yien_Chao

Hi!

change the upper limit to the desired level


If havent a lower level change the base offset




Gustavo Ubriaco Contreras
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Nachricht 3 von 23
Yien_Chao
als Antwort auf: GustavoUbriaco

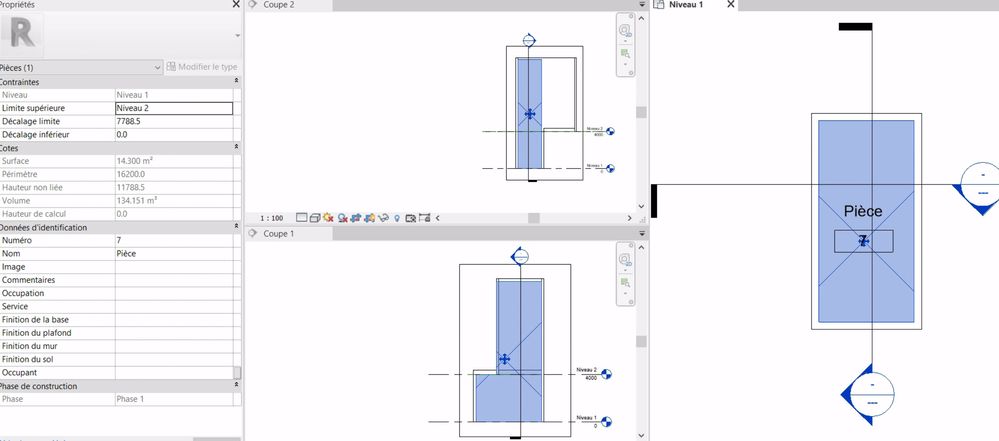

 got this... 2022-06-06_10-05-08.jpg

Nachricht 4 von 23
barthbradley
als Antwort auf: Yien_Chao




Nachricht 5 von 23
ToanDN
als Antwort auf: Yien_Chao

Place the room on level 2 and drag the bottom grip down to level 1.

Nachricht 6 von 23
GustavoUbriaco
als Antwort auf: Yien_Chao

Ok

this happens your room is placed in lower level place on the level 2 an add base offset.


You're doing like this




Gustavo Ubriaco Contreras
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Nachricht 7 von 23
Yien_Chao
als Antwort auf: barthbradley

i did exactly this.. but no success.



it always works partially.




Nachricht 8 von 23
GustavoUbriaco
als Antwort auf: Yien_Chao

walls make this a little bit hard but if you play with floor elevations levels and walls could works







Gustavo Ubriaco Contreras
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Nachricht 9 von 23
barthbradley
als Antwort auf: Yien_Chao







Did you activate VOLUME Calculations?

Nachricht 10 von 23
Yien_Chao
als Antwort auf: Yien_Chao

yes! and the build is the same.

Nachricht 11 von 23
barthbradley
als Antwort auf: Yien_Chao

Post the file.

Nachricht 12 von 23
Yien_Chao
als Antwort auf: Yien_Chao
Nachricht 13 von 23
barthbradley
als Antwort auf: Yien_Chao




Seems to work here.  Area and Volume.

Nachricht 14 von 23
barthbradley
als Antwort auf: Yien_Chao

Scratch that, @Yien_Chao. I see what you are trying to do now.  Don't think you can get there with 1 room.

Nachricht 15 von 23
Yien_Chao
als Antwort auf: barthbradley

thank you for trying

Nachricht 16 von 23
GustavoUbriaco
als Antwort auf: Yien_Chao

With analytical spaces will works.

or if I were you I'd create a mass to get that volume information






Gustavo Ubriaco Contreras
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Nachricht 17 von 23
Yien_Chao
als Antwort auf: GustavoUbriaco

i see.. bice try but we need it to be room.

Nachricht 18 von 23
ToanDN
als Antwort auf: Yien_Chao


@Yien_Chao wrote:

i see.. bice try but we need it to be room.


You want it to be Room because you need the color in a color scheme on both levels or because you need the Volume?

Nachricht 19 von 23
Yien_Chao
als Antwort auf: ToanDN

Need it for volume calculation and tag on plan.

Think i will just duplicate the room then.

Nachricht 20 von 23
ToanDN
als Antwort auf: Yien_Chao


@Yien_Chao wrote:

Need it for volume calculation and tag on plan.

Think i will just duplicate the room then.


Normally a Space volume is used for HVAC calculation, not sure what would a Room volume can be used for.



For tagging, create two rooms with identical data (name, number, etc...), one on each level.  You can group the room schedule by number un untick itemize box so the two rooms shown as one row.  Set the Volume field to Calculate Totals to get the overall volume.
