Roof Plan-Gable issue

9 ANTWORTEN 9
GELÖST
Antworten
Nachricht 1 von 10
mmward
613 Aufrufe, 9 Antworten

Roof Plan-Gable issue

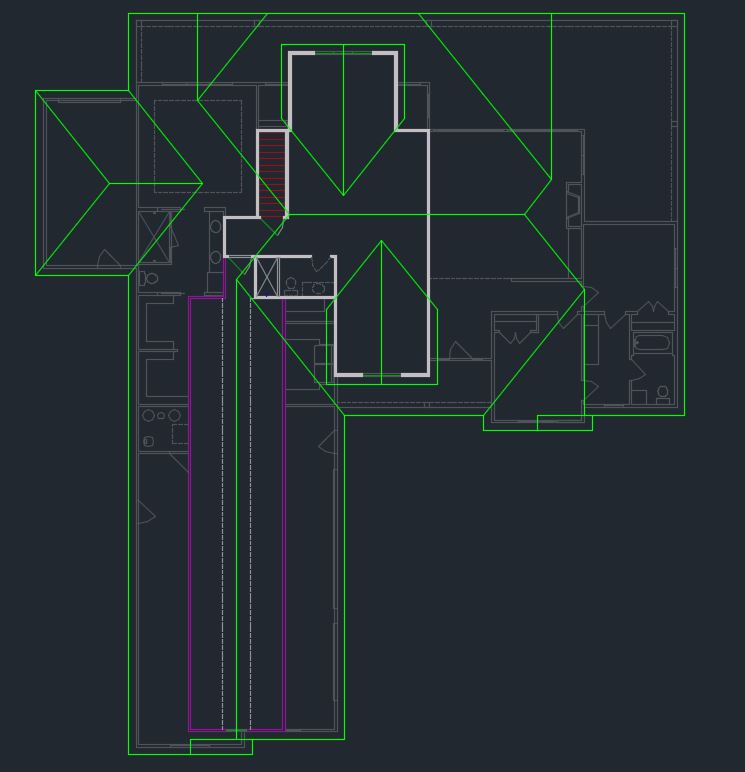

I am replicating an AutoCad drawing into Revit, and I am running into problems regarding the roof. There is a large gable on the rear of the house, but Revit is not allowing me to create this. I have attached the desired elevation, roof plan, and my current situation in Revit.

9 ANTWORTEN 9
Nachricht 2 von 10
barthbradley
als Antwort auf: mmward

Post the DWG.

Nachricht 3 von 10
mmward
als Antwort auf: barthbradley

Attached are the elevations with roof plan.

Nachricht 4 von 10
barthbradley
als Antwort auf: mmward

what about the Roof Plan too?

Nachricht 5 von 10
mmward
als Antwort auf: barthbradley

It's all in the same file.

Nachricht 6 von 10
barthbradley
als Antwort auf: mmward

afraid not.

Nachricht 7 von 10
mmward
als Antwort auf: barthbradley

Let's try that again...

Nachricht 8 von 10
barthbradley
als Antwort auf: mmward

You can get there (for the most part) by using Slope Arrows.



Slope Arrows 1019.png



Create a Roof Slope Using Slope Arrows | Revit LT | Autodesk Knowledge Network

Nachricht 9 von 10
mmward
als Antwort auf: barthbradley

Got it!! Thanks so much for the advice. The roof was still extending below the roof level, but realized I needed to change the "plate offset from base" in a couple of places to make it work.
