Roof modeling

8 ANTWORTEN 8
GELÖST
Antworten
Nachricht 1 von 9
tegorovaB77X2
524 Aufrufe, 8 Antworten

Roof modeling

Hi everyone,
this is a desirable roof plan, 4"/12" slope. Roof portion statret B11 to the right is offset 3'-3" from the main roof plane, roof B13-B20 is the same way:


I have modeled it successfully except for a jog by the elevator shaft (clouded in red on the plan above). Looking for a solution to model it correctly. Thank you







8 ANTWORTEN 8
Nachricht 2 von 9
barthbradley
als Antwort auf: tegorovaB77X2

Post the RVT here.

Nachricht 3 von 9
tegorovaB77X2
als Antwort auf: barthbradley

Here is the Revit file. thank you

Nachricht 4 von 9
barthbradley
als Antwort auf: tegorovaB77X2


@tegorovaB77X2 wrote:

Here is the Revit file. thank you




No file got attached.

Nachricht 5 von 9
barthbradley
als Antwort auf: barthbradley

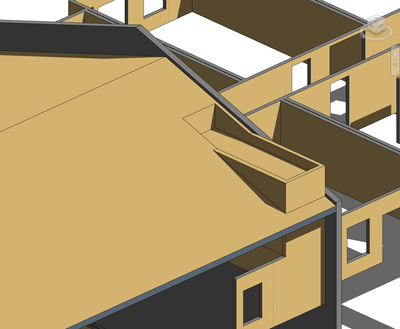

something like this?







Nachricht 6 von 9
tegorovaB77X2
als Antwort auf: barthbradley

re attached file

Nachricht 7 von 9
tegorovaB77X2
als Antwort auf: barthbradley

no Arch plan is different, see below clouded in red




Nachricht 8 von 9

I think the cause is the wrong slope here:


https://www.youtube.com/watch?v=6vx_XvggfWg

Constantin Stroescu

EESignature

Nachricht 9 von 9

Thank you that worked!
