ROOF BY FACE TOOL NOT PICKING/HIGHLIGHTING MASS

17 ANTWORTEN 17
Antworten
Nachricht 1 von 18
careyokumbe
1069 Aufrufe, 17 Antworten

ROOF BY FACE TOOL NOT PICKING/HIGHLIGHTING MASS

Hello so this issue is quite annoying.  I created a curved form through mass so that i can make a  complex curved roof using the roof by face tool . It worked multiple times before but when i had to delete the mass in order to make a better roof the roof by face arrow or picker wouldn't highlight the mass at all. The picker works for the wall and topo solid. The mass has a simple geometry i just wonder why it wouldn't pick it this time round yet previous masses were more complexspline through pointsspline through pointsThe created form cannot be picked by the roof by faceThe created form cannot be picked by the roof by face

17 ANTWORTEN 17
Nachricht 2 von 18
hmunsell
als Antwort auf: careyokumbe

when I tried this, it had to do with how the end conditions were lined up.



if they were off, it wouldn't work.




basically the same shape, but when those end condition's weren't in line, it wouldn't make the roof.  i could make it a Wall or Curtain System, but not a Roof.

Howard Munsell
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.



EESignature


Nachricht 3 von 18
ToanDN
als Antwort auf: careyokumbe

You said you could create a wall by face with that shape then do it.

Nachricht 4 von 18
hmunsell
als Antwort auf: ToanDN

I already deleted the file.....



I'll remake it though, just for you :strahlendes_Gesicht_mit_lächelnden_Augen:.

Howard Munsell
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.



EESignature


Nachricht 5 von 18
hmunsell
als Antwort auf: ToanDN


@ToanDN wrote:

You said you could create a wall by face with that shape then do it.

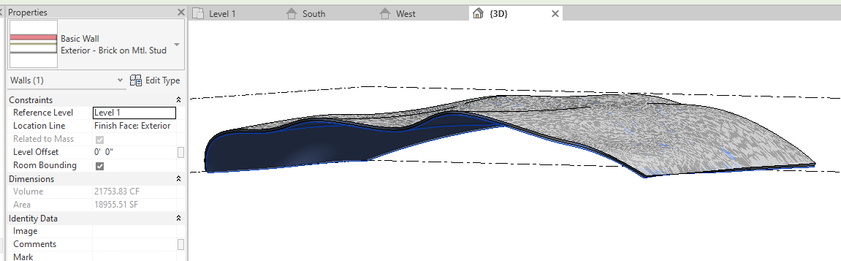

Here it is as a Wall by Face.







Howard Munsell
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.



EESignature


Nachricht 6 von 18
hmunsell
als Antwort auf: ToanDN

@ToanDN I didn't see you were replying to @careyokumbe, not me... sorry, my bad :Gesicht_mit_Freudentränen: :sich_vor_Lachen_auf_dem_Boden_winden: ....

Howard Munsell
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.



EESignature


Nachricht 7 von 18
careyokumbe
als Antwort auf: hmunsell

hello thanks for this but problem with a wall is you cant really attach a wall to it or maybe i just dunno how to attach a wall to a wall in revit

Nachricht 8 von 18
careyokumbe
als Antwort auf: ToanDN

I cant just wing it... i thought maybe there are principles to follow with the spline through points... yet i dunno what worked for me then

Nachricht 9 von 18
careyokumbe
als Antwort auf: hmunsell

These are ordinary splines... how can you change the heights of those  end points

Nachricht 10 von 18
hmunsell
als Antwort auf: careyokumbe


@careyokumbe wrote:

how can you change the heights of those  end points


In my simplified version, I just went into an elevation and adjusted them the spline. I assuming you made a series of splines and then selected them to make a solid form. If you make a Reference Plane or Section parallel to each spline,


you can use the Orient to View or Orient to Plane tools to set your view as needed.

hmunsell_6-1714564242019.png          hmunsell_1-1714563527788.png




The more fluid forms like that do seem to be finicky though. In my second example I had to remake the mass face and I couldn't get a roof to place. It would let me select it, but I got an error when it tried to make it. I'm sure if I played with it some I cold have gotten it to work.



What is the end product? Is that going to be a solid Roof, a Membrane, Glass, ...?

Howard Munsell
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.



EESignature


Nachricht 11 von 18
careyokumbe
als Antwort auf: hmunsell

In instances where the roof by face can highlight the roof but brings an error of can't make roof,  i earlier realized that it can work when you go to the picked faces location and choose switch the roof facing bottom rather than top at the properties panel

Nachricht 12 von 18
careyokumbe
als Antwort auf: hmunsell

lemme try and see if i can change the end points to align

Nachricht 13 von 18
careyokumbe
als Antwort auf: hmunsell

Its supposed to be a solid roof



Nachricht 14 von 18
ToanDN
als Antwort auf: careyokumbe


@careyokumbe wrote:

hello thanks for this but problem with a wall is you cant really attach a wall to it or maybe i just dunno how to attach a wall to a wall in revit


Good point.  Can you share the mass?

Nachricht 15 von 18
careyokumbe
als Antwort auf: ToanDN

yes please how do i do that



Nachricht 16 von 18
ToanDN
als Antwort auf: careyokumbe


@careyokumbe wrote:

yes please how do i do that




Attach it to your post.






Nachricht 17 von 18
careyokumbe
als Antwort auf: ToanDN

can i send via google drive the file is too large

Nachricht 18 von 18
ToanDN
als Antwort auf: careyokumbe


@careyokumbe wrote:

can i send via google drive the file is too large


Yes.
