Revit Window projection

sksaaranshk_0-1627127448237.pngsksaaranshk_2-1627127531401.pngsksaaranshk_3-1627128004309.png

Hi,

I am encountering this problem where I want the window overhead projections of 1st floor to be visible in the 1st floor plan view with the hidden/overhead line style. But no matter what I do I am not able show them in the desired way in the plan.

Instead Revit is showing me the window projections of the Ground floor ,in the 1st floor plan view.

FYI, The window projections have been modelled as floor on each lintel level of respective floors.

Please tell me how to show overhead projections in plan view.

9 ANTWORTEN 9
Nachricht 2 von 10
barthbradley
als Antwort auf: Anonymous

Nachricht 3 von 10
RDAOU
als Antwort auf: Anonymous

@Anonymous



Floors category do not show as overhead.

  1. You can model them as a loadable family of a category that shows in plan views when within view rang.
  2. You can add the overhead detail lines in the window family itself
  3. OR...

IF you prefer to keep them as floor elements...you can use underlay of that floor looking up then use linework as shown below:



Show overhead roof.gif

YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 4 von 10
Anonymous
als Antwort auf: RDAOU

Hi RADOU,
Thanks a lot for the your comprehensive response and effort.
Really appreciate it.
I think that the 3rd option is the most prevalent solution and easy. I was of the notion that this can be achieved automatically in Revit somehow as its a standard practice to show overhead lines as hidden lines.

On the same note, the overhangs of the below floor are visible. Is there a way to get rid of them in the plan view?
Nachricht 5 von 10
RDAOU
als Antwort auf: Anonymous

@Anonymous

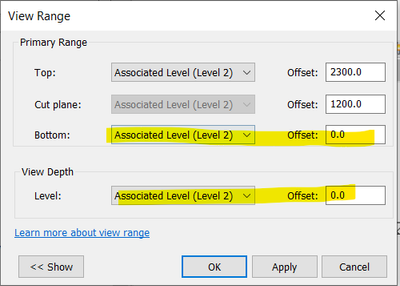

Adjust the view rang (Set Bottom and view depth level to the associated level with 0 offset) and in the properties palette  remove any underlay






YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 6 von 10
Anonymous
als Antwort auf: RDAOU


I tried this, its not working.

Nachricht 7 von 10
RDAOU
als Antwort auf: Anonymous

@Anonymous

can you highlight the associated level on a section? Which would the 5 FFL be? not the one cutting through the Overhang would it?





YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 8 von 10
Anonymous
als Antwort auf: Anonymous


Highlighted is the associated level. Its the first floor plan and not cutting through the overhang.



Nachricht 9 von 10
JasonLLINDNER
als Antwort auf: Anonymous

@Anonymous



Delete the plan view and recreate it from the View tab . Maybe it is acting weird from the many trials you did in it





Nachricht 10 von 10
Anonymous
als Antwort auf: JasonLLINDNER

It didn't work:nachdenkliches_Gesicht:
