Revit wall wrapping in SECTION

3 ANTWORTEN 3
GELÖST
Antworten
Nachricht 1 von 4
vw-architects
4614 Aufrufe, 3 Antworten

Revit wall wrapping in SECTION

I know there is a way to wrap gypsum in section... I have done it before but forget. Tried to find the video I used and cannot seem to find that either. My issue is that I have a wall that comes down from the ceiling about 13". I don't want the end to be shown incorrect in section and putting masking regions will take too much time. If someone can give me some advice I would appreciate it. I have attached an image as well.

3 ANTWORTEN 3
Nachricht 2 von 4

one method could be :

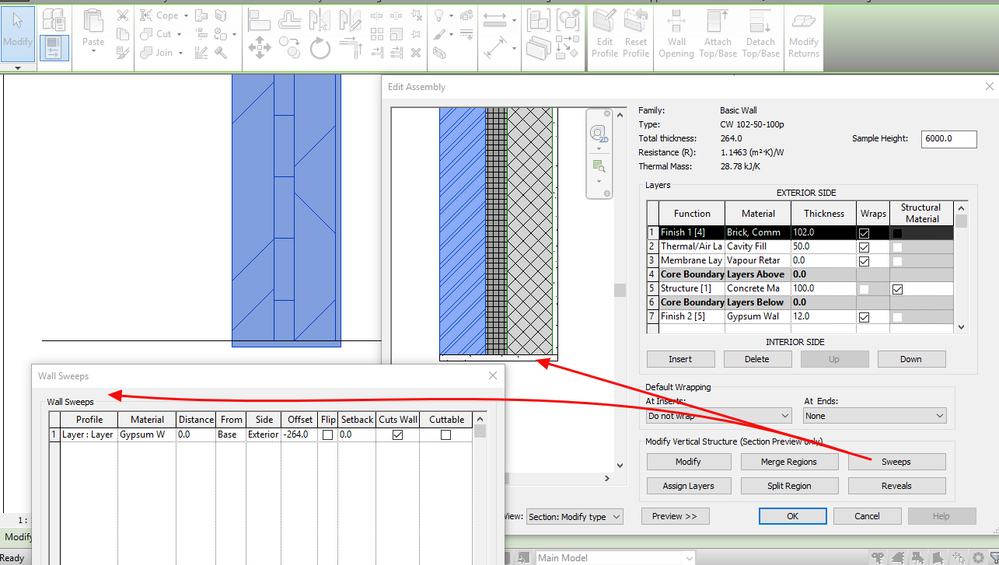

  • in model component: Wall > Sweep    - Wall > Properties > Edit Type > Type Properties > Construction>Structure>Edit > Modify Vertical Structure ( in Vertical section view) > Sweeps.  The Sweep Profile is made so to to fit the thickness of the wall and the thickness of the Layer

Image 1.png



  • Other method could be a View tool : Cut Profile - a very quick method but it does not affect the model as the first method does.

Constantin Stroescu

EESignature

Nachricht 3 von 4

How about for openings using the same constraints from the family object as the plan shows?

Nachricht 4 von 4
ToanDN
als Antwort auf: nathaniel.mcmahon

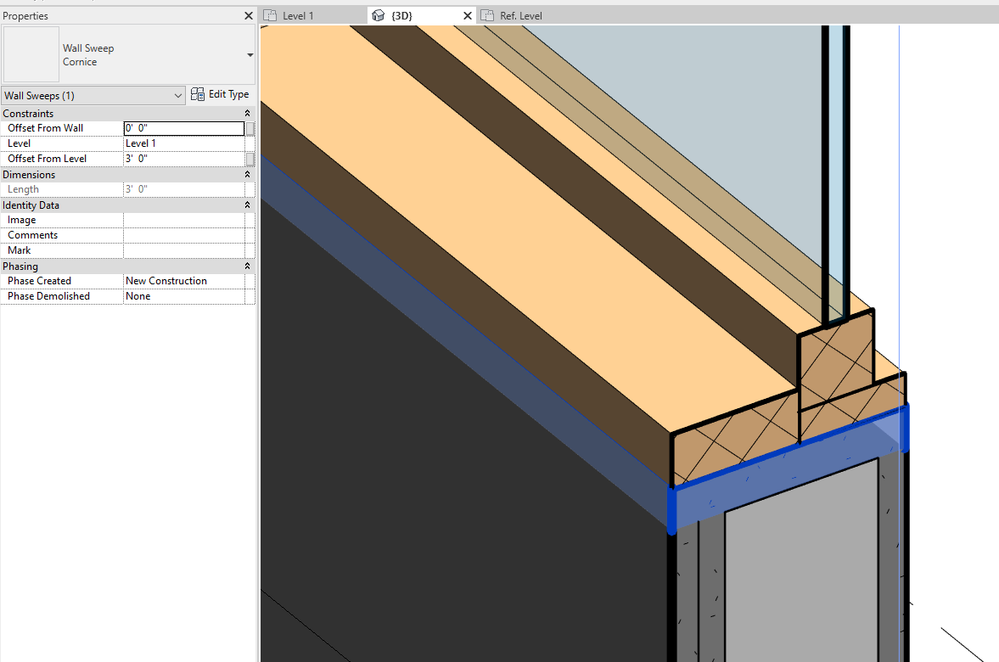

Manually place a Wall Sweep above and below the opening and grip stretch them to fit?



Annotation 2019-03-19 164719.png
