Revit does not join top railing properly after setting offset from path to negative value

6 ANTWORTEN 6
GELÖST
Antworten
Nachricht 1 von 7
m.milovanovicJM673
1242 Aufrufe, 6 Antworten

Revit does not join top railing properly after setting offset from path to negative value

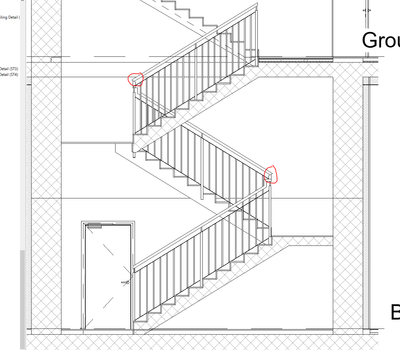

Wrong Joint Section.PNGWrong Joint.PNGHi all,

I am struggling with top rail joint in stair's railing I created.
If offset from path is set to 0 Revit creates top rail properly but I set offset from path to -2.5cm, which I need to properly attach raling's balusters to concrete slab under stair's finishing,Revit makes incorrect joint in top rail.

Does anyone have idea how to correct this?
Regards

6 ANTWORTEN 6
Nachricht 2 von 7
alan_eu
als Antwort auf: m.milovanovicJM673

Most of the time I prefer to model in place these kinds of detail. Unfortunately, railings, stair or ramps haven´t the best personalized fine configurations :enttäuschtes_Gesicht:

Alan Araújo EESignature
Bee1ColabInstagram Alan Araújo RevitBee1ColabGrupo Whatsapp


Usuários do Autodesk Community:
  • Se a resposta resolveu o seu problema, clique em Aceitar como Solução! isso ajuda os outros usuários a encontrar rapidamente uma resposta e Curta se gostou :leicht_lächelndes_Gesicht:
  • Manda um alô nas minhas redes sociais com +600 vídeos de de Revit/BIM, Templates e conteúdos semanais! Gratuitos! :leicht_lächelndes_Gesicht:
Nachricht 3 von 7
syman2000
als Antwort auf: m.milovanovicJM673

You can try to switch from Gooseneck to Simple and see if that gives you better result.





Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 4 von 7
m.milovanovicJM673
als Antwort auf: syman2000

Hi Syman,

yes,I tried that... doesn't solve the problem....it seems Revit doesn't have good solution for automatic railings...

Nachricht 5 von 7
m.milovanovicJM673
als Antwort auf: alan_eu

Hi Alan, I was afraid I will hear that as only solution....

Nachricht 6 von 7
alan_eu
als Antwort auf: m.milovanovicJM673

@m.milovanovicJM673 Revit has many options to configure railings, but sometimes we can't :enttäuschtes_Gesicht:



A good item to the wish list would be an edit 3D sketch path do draw railings like a  semi-manual-mode...

Alan Araújo EESignature
Bee1ColabInstagram Alan Araújo RevitBee1ColabGrupo Whatsapp


Usuários do Autodesk Community:
  • Se a resposta resolveu o seu problema, clique em Aceitar como Solução! isso ajuda os outros usuários a encontrar rapidamente uma resposta e Curta se gostou :leicht_lächelndes_Gesicht:
  • Manda um alô nas minhas redes sociais com +600 vídeos de de Revit/BIM, Templates e conteúdos semanais! Gratuitos! :leicht_lächelndes_Gesicht:
Nachricht 7 von 7
syman2000
als Antwort auf: m.milovanovicJM673

sometimes it depends how the railing is constructed. Share the railing sample so we can take a look.

Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
