Revit display satellite terrain imagery with DWG link file

4 ANTWORTEN 4
Antworten
Nachricht 1 von 5
tadeh.hakopian7BNUW
1402 Aufrufe, 4 Antworten

Revit display satellite terrain imagery with DWG link file



I prepared a DWG with a satellite image to link into Revit.

Everything looks good in AutoCAD but when I link into Revit the aerial photo is not displayed, just geometry.

I linked it in and placed it with default settings with the same unit system for all models.

I also tried different graphic settings in the view and nothing seems to work.



Is there a setting to adjust to see the photo layer of this image when it goes into  Revit?



Graphics below to describe the issue:



The prepared AutoCAD dwg file in AutoCAD desktop showing the topography and satellite imagery:

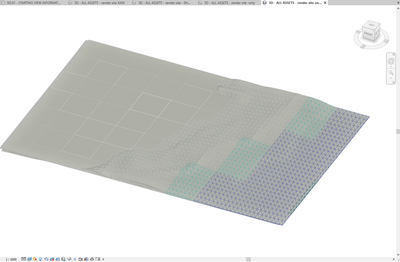

The DWG linked into Revit but not showing the satellite imagery only the topography in 3D.

The image below is rendered with 'realistic' mode in the 3D view:










Beschriftungen (2)
4 ANTWORTEN 4
Nachricht 2 von 5

I can say how I do it to work in my projects:

  • First , I  create the 3d model with mapped image in Infraworks


  • then I export model to .fbx






  • then open FormitPRO and save model as .axm ( Formit native)
  • open Revit and Insert Link CAD  > select the previously selected .axm file
  • the 3d model with mapped image will be seen in Realistic mode and in Renderings




rendering:




Constantin Stroescu

EESignature

Nachricht 3 von 5

self-reply, please ignore.

Nachricht 4 von 5

Interesting I'm going to try this option.

The only issue is that you have to import the AXM file instead of just linking it like a DWG.

If you want to update the site layout or reduce the Revit file size this can be an issue.

Nachricht 5 von 5

I tried your technique with the project site and it looks a lot better than the original image.



Screenshot - 2_16_2023 , 6_41_01 PM.png



The file size of the AXM model import wasn't too bad, about 22MB.

I experimented with other sites and they were over 100MB inserted into Revit.

Do you have other workflows or techniques to get terrain images into Revit with Autodesk or other platforms?

I want to try other avenues to see what can work and what the options are.



Thanks for your help.
