Revit Dimension Ticks - Different on Each Side

6 ANTWORTEN 6
GELÖST
Antworten
Nachricht 1 von 7
crutledgeX3SU3
2460 Aufrufe, 6 Antworten

Revit Dimension Ticks - Different on Each Side

Hi all,



I know this is a topic that was brought up before but does anyone know if there was a fix or work around to have the tick marks in a dimension style to be different on each end? Specifically for dimensions from gridlines, to have one an arrow and one a tick.



I know you can change the CL tick mark but this doesn't help when I am placing a dimension on the face of an object/wall.



Thanks!

6 ANTWORTEN 6
Nachricht 2 von 7
ToanDN
als Antwort auf: crutledgeX3SU3

Use Ordinate Dimensions to get different ticks.



Annotation 2019-12-05 153623.png

Nachricht 3 von 7
jquarry
als Antwort auf: ToanDN

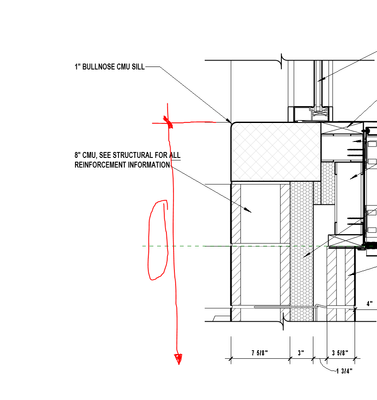

Is there a way to only have one tick mark? For instance, a wall section detail where you are only showing the sill of a window. I would like to have a dimension to the floor similar to this:






Nachricht 4 von 7
yulinwang7
als Antwort auf: jquarry

I also want to know how to do it
Nachricht 5 von 7
Ian_H
als Antwort auf: ToanDN

Thanks! I learned something new today!

Nachricht 6 von 7
sflores
als Antwort auf: yulinwang7

Hi! Will you tell please me the steps to make this work? All I see is the end result but not how to get there.

Nachricht 7 von 7
Ian_H
als Antwort auf: sflores

You edit the Dimension Properties and change it to Ordinate, then edit the Ordinate Dimensions Properties.
