Railing w/ inlay Pattern - How would you model this?

[RevBR79B]

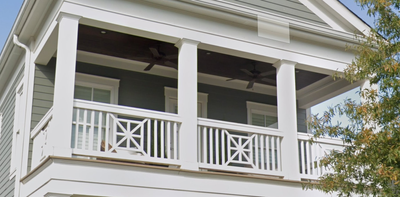

How would you model this railing?

I would like to have a normal railing family and then use a void to cut out where the inlay goes and then an in-place to model the decorative pattern.

However, I cannot void the railing with in-place or family void. This could be pretty easy if the railing can be voided. If it cannot, then I think it would be achieved through using an implace for the entire center decorative section and then have it flanked on both sides by the railing family.

I am looking for a practical streamlined workflow for modeling these types of features in railings. I am trying to figure out what is the best workflow we have right now?

v/r

rev

[Basam.Yousif · Accepted solution]

First, model the family as a "Baluster-Panel. It should be a simple extrusion, with voids OR a simple bar polar-arrayed around the center then joined.

Then use it in the "Baluster Placement" as a part of the "Main Pattern" that repeats.

You can also download a few sample 'panels' from the cloud library:

There is a sample model in the content library (which you may not have installed but you need to) with a few good examples. I attached the 2025 model.

[mari.shimode]

Hi @RevBR79B, did the information provided answer your question? If so, please use Accept Solution so that others may find this in the future.

If you still have the issue, please let us know. Thank you.

[mari.shimode]

Hi @RevBR79B, I think @Basam.Yousif's reply is useful for the community so I have marked it as an accepted solution so others who have the same question can refer to it.

If you're still having the issue or have any other questions related to what you originally asked, please create a new topic with a link to this post included so the community can follow the conversation easily.
