Railing to Follow Step of Stairs

13 ANTWORTEN 13
GELÖST
Antworten
Nachricht 1 von 14
d.buckingham
4481 Aufrufe, 13 Antworten

Railing to Follow Step of Stairs

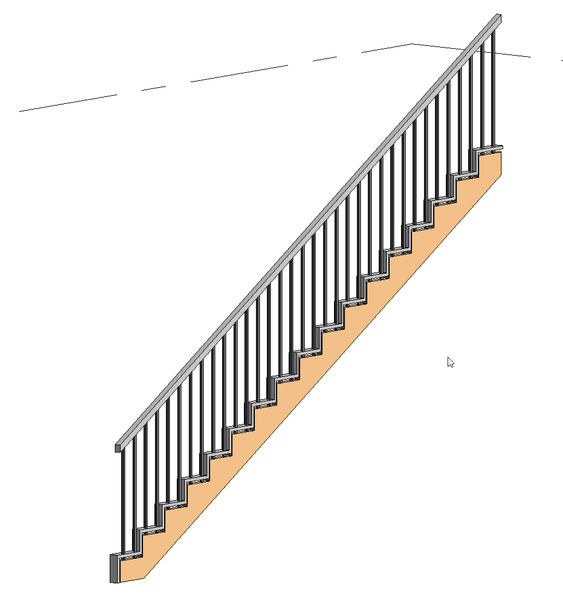

Hi, I'm looking to get the lower rail of a railing to follow the steps of a stair (see attachment).

In the image, I have modelled the bottom rail as just a Generic Model sweep that is separate to the railing, but ideally I'd like it to be integrated.

Can anyone offer any solutions?

13 ANTWORTEN 13
Nachricht 2 von 14
hmunsell
als Antwort auf: d.buckingham

if your using Railings with a Top Rail, you can tab select the "top rail" and pick the Edit Rail option in the Ribbon. then you can select Edit Path.



you could also create an Termination family that can be assigned to the beginning or end of the Top Rail.



Screencast....

https://autode.sk/2tryd4l

Howard Munsell
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.



EESignature


Nachricht 3 von 14
barthbradley
als Antwort auf: d.buckingham

Kind of like this?






or like this:






Nachricht 4 von 14
d.buckingham
als Antwort auf: barthbradley

Very similar to your second solution. Is that an integral part of the Railing system?

Nachricht 5 von 14
d.buckingham
als Antwort auf: hmunsell

Thanks for the response, I understand Top Rails, but this does not give me the result I'm after.

I want to avoid having to manually model this rail for every staircase.



Nachricht 6 von 14
barthbradley
als Antwort auf: d.buckingham


@d.buckingham wrote:

Very similar to your second solution. Is that an integral part of the Railing system?




No.  An In-Place Sweep.

Nachricht 7 von 14
d.buckingham
als Antwort auf: barthbradley

That is how I created the lower rail in my example.

Ideally I want to avoid having to model this on every core staircase in my building (multiple cores over multiple floors!)

Nachricht 8 von 14
hmunsell
als Antwort auf: d.buckingham

Ahhh after seeing @barthbradley example, i see what your referring to. i don't know of any way to follow the step and integral to the railing.

Howard Munsell
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.



EESignature


Nachricht 9 von 14
barthbradley
als Antwort auf: d.buckingham

I can suggest an approach. Build the bottom rail into a separate Stair Type as Treads and Risers on an Open Stringer. Width of Stair Type=width of Stringer -- or width of Stairs=width of bottom rail (and inset Stringer a bit).




Nachricht 10 von 14
hmunsell
als Antwort auf: barthbradley

this really got my curiosity up. i have done lots of things with railing in the past. i use a Panel family as one of the balusters. the panel family is a L shaped element.



I'm so close.... LOL

Capture 2.JPG Capture.JPG



Capture 4.JPG



Capture 3.JPG

Howard Munsell
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.



EESignature


Nachricht 11 von 14
RDAOU
als Antwort auf: d.buckingham



It can simply be modeled into the Baluster family...

- extrude as many posts you need per thread

- extrude the base plate

- in the project set 1 baluster per step




YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 12 von 14
hmunsell
als Antwort auf: RDAOU

there you go.... i was making it too complicated :-).

Howard Munsell
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.



EESignature


Nachricht 13 von 14
RDAOU
als Antwort auf: hmunsell

works with a panel too but baluster with the "1 baluster per tread" is easier for placement

YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 14 von 14
d.buckingham
als Antwort auf: RDAOU

Thanks, this is what I'm after!

Never thought about integrating it into the baluster, looks like I've got a bit of work to do!

Thanks again.
