Project base point coordinates aligned but models' psotion doesn't match

3 ANTWORTEN 3
GELÖST
Antworten
Nachricht 1 von 4
dimitris9GXW2
1140 Aufrufe, 3 Antworten

Project base point coordinates aligned but models' psotion doesn't match

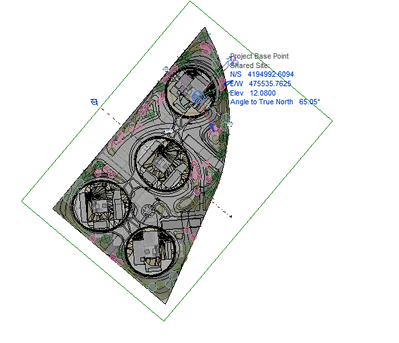

Dear Revit users, even though I've been using Revit for a long time there is stuff regarding the Coordinates I don't understand. I created the architectural model I want to align it to the Structural that just arrived. I aligned the Structural model to the architectural I acquired coordinates and synced (pic1).


When linking the Architectural model to the Structural link it seems rotated by the amount of the "Angle to True North" value (pic2). I can fix it by turning the value to 0 instead of 65.05, that way they will be aligned but the values will differ from each other. Can someone explain to me why can't I align them and share the same Angle value?








3 ANTWORTEN 3
Nachricht 2 von 4
kostask_oionei
als Antwort auf: dimitris9GXW2

Hi,

Check the orientation in view properties. Is Project or True North? And then insert the structural model.


If my post help you, please give a like.
If your question was answered please mark it with ACCEPT SOLUTION. This helps others to find answers...


Kostas Kouris
Architect Engineer, M.Sc., ACI, ACP

Nachricht 3 von 4
dimitris9GXW2
als Antwort auf: kostask_oionei

I think this is relevant for CAD links not Revit links. Correct me if I'm wrong

Nachricht 4 von 4
dimitris9GXW2
als Antwort auf: dimitris9GXW2

Seems like it got fixed by aligning the architectural model in the structural and publishing the coordinated to the architectural. I thought I had already tried it. Anyway it works more or less as it should.
