Problem with voids in Family

nlardiesU5J7A
Explorer
Explorer

Hi all!

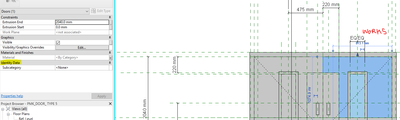

I'm doing a void into a door family, but doesn't work how I expected. I duplicated the panel void (see attached image) from one door leaf to another and only works into one of them. On right leaf, the void works because apparently leaf extrusion doesn't have Identity Data parameter "Solid/Void", but, on left leaf doesn´t work doing the same operation.



Could anybody help?

Thanks










0 Likes
290 Views
1 Reply
Reply (1)
Message 2 of 2

RDAOU
Mentor
Mentor

@nlardiesU5J7A



  1. Tab Select the extrusion...
  2. from the drop down menu of Solid/Void ...
  3. Pick void
  4. then cut the leaf with the void



Alternatively...Attach the family to show you how to do that in a GIF or screencast









YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION
