Problem with Creating PDF from Revit

14 ANTWORTEN 14
GELÖST
Antworten
Nachricht 1 von 15
HJiang85U97
651 Aufrufe, 14 Antworten

Problem with Creating PDF from Revit

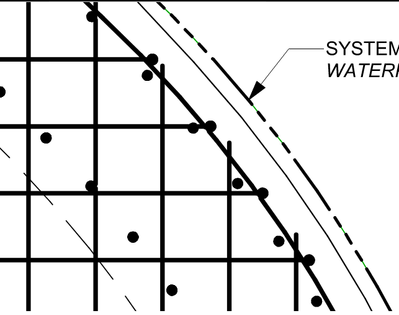

I encountered a problem with PDF creation from Revit sheet. Some details lines show a thinner green line on top of actual line. ​The Revit is 2021. PDF driver is Bluebeam. I've tried with CutePDF writer but the result is the same.








14 ANTWORTEN 14
Nachricht 2 von 15
ToanDN
als Antwort auf: HJiang85U97

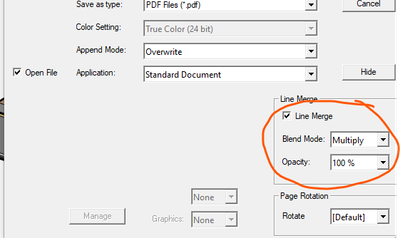

Try this setting when print to Bluebeam PDF.






Nachricht 3 von 15
yes_and_no
als Antwort auf: HJiang85U97

Never thought of that...

Nachricht 4 von 15
HJiang85U97
als Antwort auf: HJiang85U97

Much better but still a few green lines...




Nachricht 5 von 15
HJiang85U97
als Antwort auf: HJiang85U97

Same spot as in my original post:




Nachricht 6 von 15
ToanDN
als Antwort auf: HJiang85U97

Of course it only eliminates the green line where there is a black line in the same place.  If there is a gap then the green line still shows through.



Here is a side by side for your comparison:











Nachricht 7 von 15
HJiang85U97
als Antwort auf: ToanDN

Thanks. Do you know how these green lines generated? I checked that there are no duplicate lines in the view.

Nachricht 8 von 15
ToanDN
als Antwort auf: HJiang85U97


@HJiang85U97 wrote:

Thanks. Do you know how these green lines generated? I checked that there are no duplicate lines in the view.


Wait, are you saying the green lines don't exist in Revit but PDF?  If so, I would need to see the Revit file.

Nachricht 9 von 15
HJiang85U97
als Antwort auf: ToanDN

Thanks again. Unfortunately it's a confidential project and I can't upload anything from it to the forum.

Nachricht 10 von 15
ToanDN
als Antwort auf: HJiang85U97


@HJiang85U97 wrote:

Thanks again. Unfortunately it's a confidential project and I can't upload anything from it to the forum.


Fair enough.

What is that element with the black square grid lines?

Nachricht 11 von 15
HJiang85U97
als Antwort auf: ToanDN

Those are just detail lines in a section view representing structural reinforcement.  We don't include reinforcement in the 3D model.

The screenshot below is from the view in Revit. The shading is the wall I highlighted.




Nachricht 12 von 15
ToanDN
als Antwort auf: HJiang85U97

What are the View's Discipline and Show Hidden Lines?

Nachricht 13 von 15
HJiang85U97
als Antwort auf: ToanDN

It's architectural and shows all hidden lines. I stepped into this project from nowhere. Previous modeler left the company last year. It's a stop-n-go painful bilingual project.




Nachricht 14 von 15
ToanDN
als Antwort auf: HJiang85U97


@HJiang85U97 wrote:

It's architectural and shows all hidden lines.






Change Show Hidden Lines to By Discipline, reprint and see what gets you.

Nachricht 15 von 15
HJiang85U97
als Antwort auf: ToanDN

You're genius! Thanks a lot.
