Print Sheet Layout Not beyond the Sheet Border

8 ANTWORTEN 8
GELÖST
Antworten
Nachricht 1 von 9
CharlesBerteaux
16336 Aufrufe, 8 Antworten

Print Sheet Layout Not beyond the Sheet Border

Is there a way or workaround to have Revit only print the sheet and not things that are beyond the Sheet border????



We use non plotting designer notes and we need to print sheets, but don't want Revit to look beyond the Sheet border..... All attempts at this fail.....



See Screenshot Below:

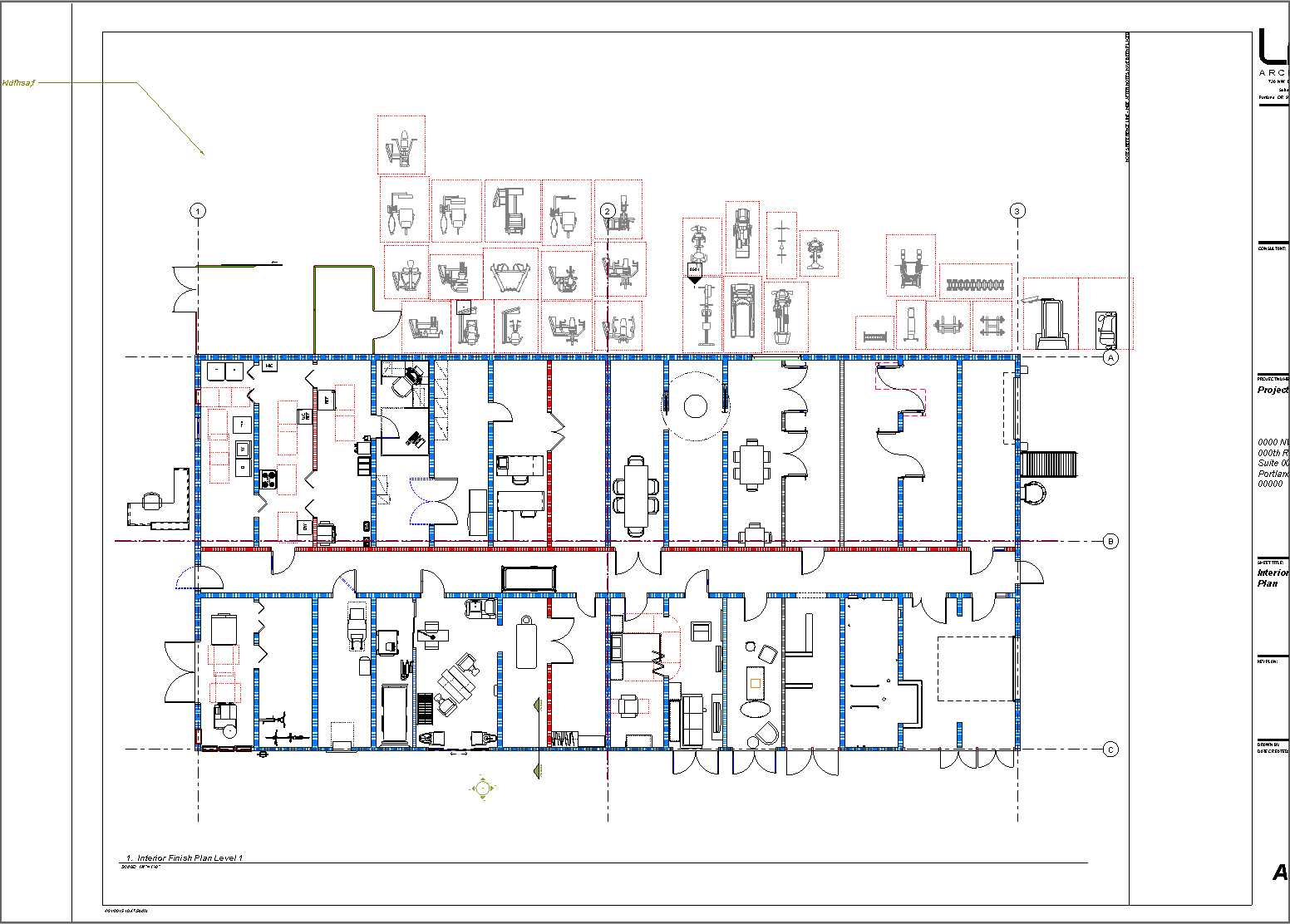

Revit Print Window_Layout.png

Charles Berteaux Iv
EDT BIM/VDC/Technology Department Manager | SSOE Group | Hillsboro
www.ssoe.com

Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.


EESignature

8 ANTWORTEN 8
Nachricht 2 von 9
L.Maas
als Antwort auf: CharlesBerteaux

Do you place the notes on the views or on the sheet?

If you place them on the views you would work with crop views and annotation crops

You also could use graphics overrides (view template) to hide them.



If you place your designer notes on the sheet itself:

-First recommendation would be not to place those kind of notes on the sheet.

-Also here you could use graphics overrides to hide them.

-If you have your title block sized according to your paper size then if you make sure that the notes are above the title block (not below) and right of the title block (not left) it should be Ok. If I am correct Revit places title block from lower left point of your title block



Screenshot of sheet from Revit with text added to sheet




The square marked by the two arrows is the size of target sheet (A3, 420x297)

Some text is across this frame and some right of it (third arrow).



Hereunder a screenshot of the PDF printout




Note that only text crossing the titleblock square is printed



Note that I always use zoom 100% in the print settings



Print Settings.png



So if your text is right (not left) or above (not below) this square then it should not be printed. I believe Revit starts with the bottom left corner of the titleblock as origin of the print out

























Louis

EESignature

Please mention Revit version, especially when uploading Revit files.

Nachricht 3 von 9
CharlesBerteaux
als Antwort auf: L.Maas

Great Comment!!!  but it does not work.....



We always use zoom 100%, so thats not the issue. The notes need to live on the sheet because I dont want PM/PA in the views possibly messing up the model. This way they can contribute, and other team memebers can leave comments without it mucking up the model.



Trying it your way:



Top and Left Notes:

top and left.png

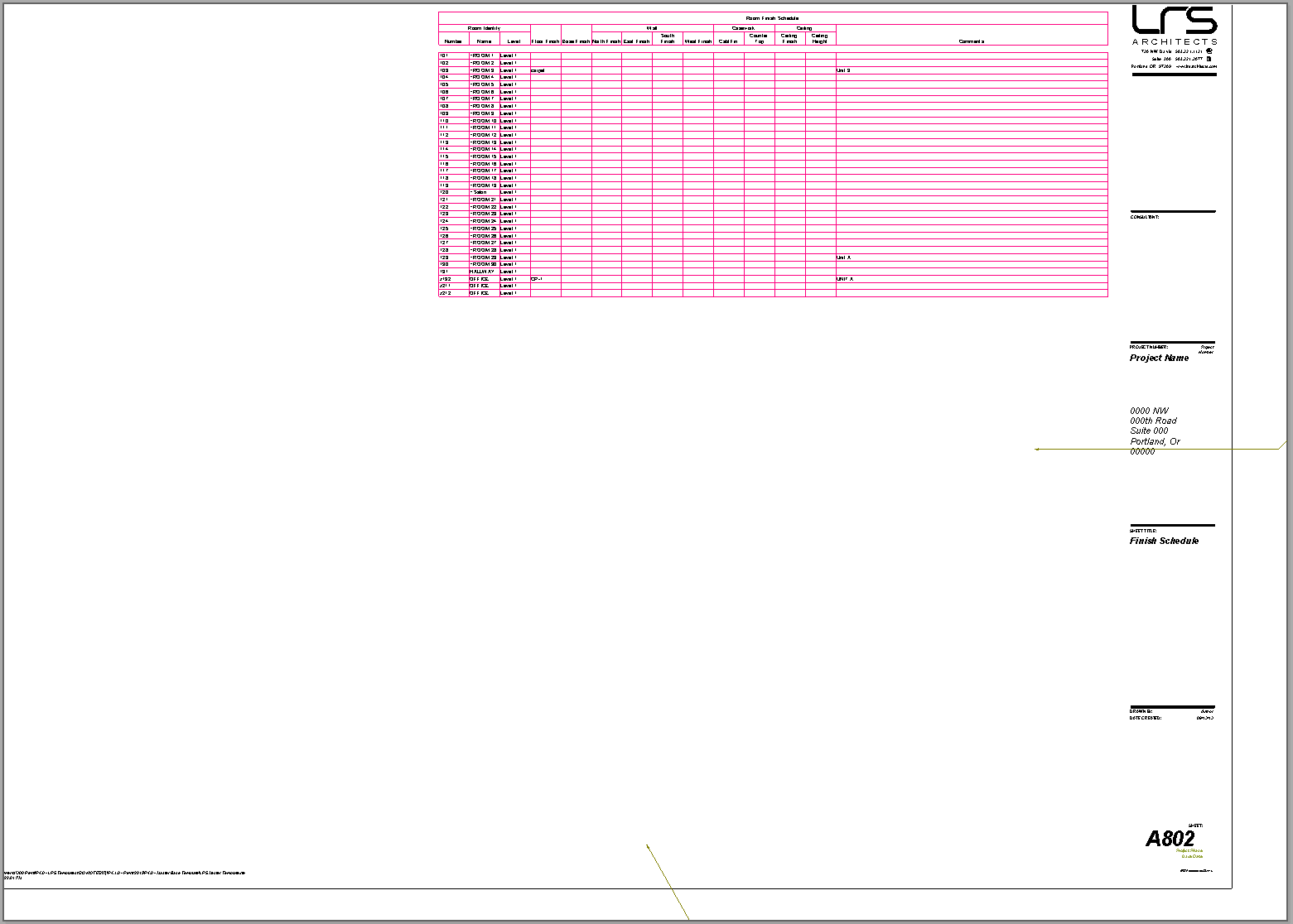

Bottom and Right:

Bottom and Right.png



Top and Right:

Top and Right.png



Bottom and Left:

Bottomm and Left.png





Revit still wants to shift the Printed view to include the annotations.

Charles Berteaux Iv
EDT BIM/VDC/Technology Department Manager | SSOE Group | Hillsboro
www.ssoe.com

Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.


EESignature

Nachricht 4 von 9
L.Maas
als Antwort auf: CharlesBerteaux

I expect that it has to do with these print setup settings



Print Settings.png

Louis

EESignature

Please mention Revit version, especially when uploading Revit files.

Nachricht 5 von 9
CharlesBerteaux
als Antwort auf: L.Maas

Nope, nope, and Nope....lol



So here are my print setup settings:



Print Setup one.png



print setup 2.png



I get the following:



print setup 1-1.png



if I change the setup as you speciifed:

print setup 3.png



I get the following:

print setup 4.png

Charles Berteaux Iv
EDT BIM/VDC/Technology Department Manager | SSOE Group | Hillsboro
www.ssoe.com

Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.


EESignature

Nachricht 6 von 9
David_W_Koch
als Antwort auf: CharlesBerteaux

The reason your final try (with Offset from Corner, No Margins) failed was because you have notes to the left and below the title block.  If you eliminate those, then the lower left corner of the title block will be at the lower left of the plot area, and any notes (or other things) above or to the right of the title block will be cut off.


David Koch
AutoCAD Architecture and Revit User
Blog | LinkedIn
EESignature

Nachricht 7 von 9
CharlesBerteaux
als Antwort auf: David_W_Koch

that worked perfectly!!! thanks a bunch!!!!

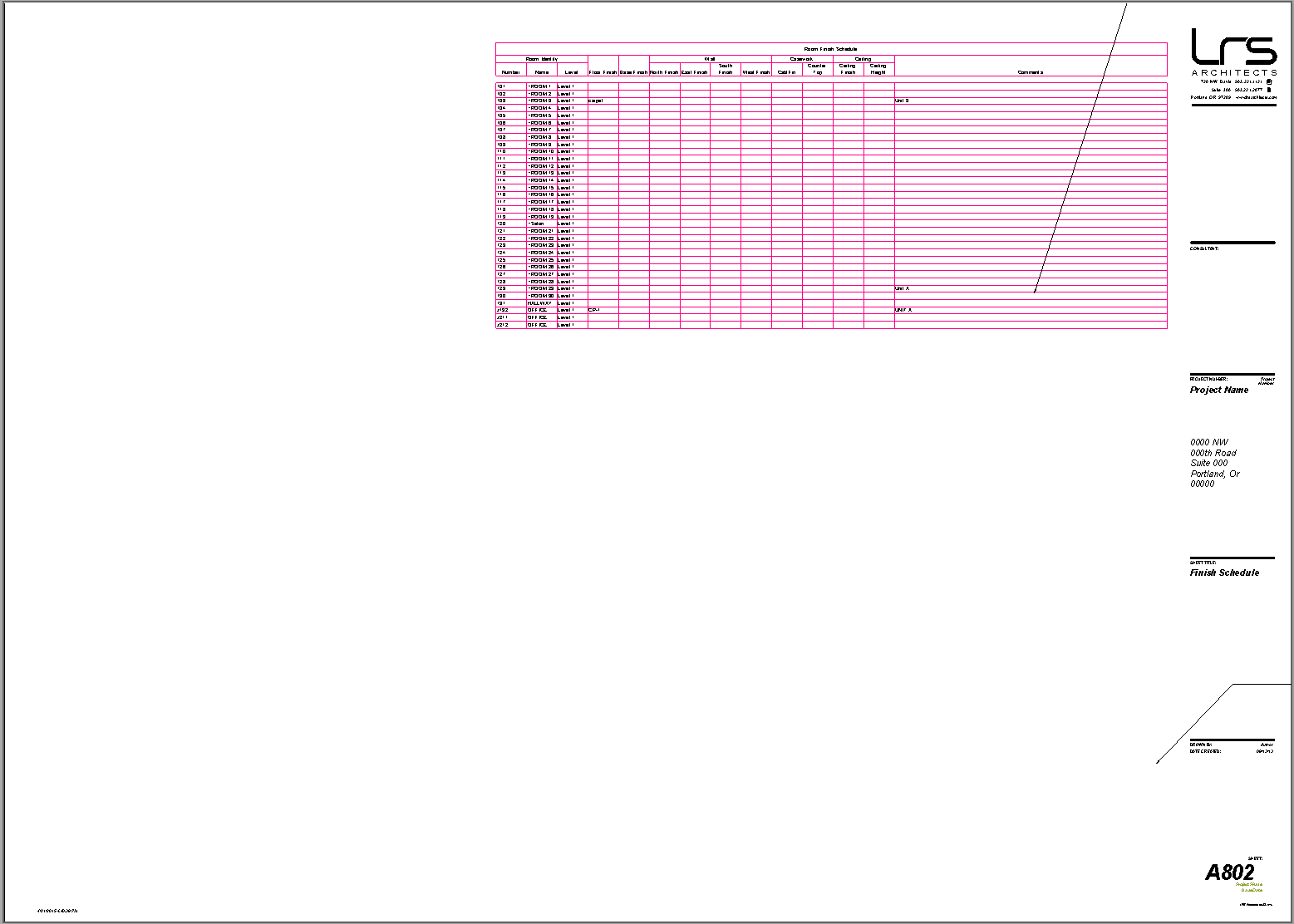

plotting final.png

Charles Berteaux Iv
EDT BIM/VDC/Technology Department Manager | SSOE Group | Hillsboro
www.ssoe.com

Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.


EESignature

Nachricht 8 von 9
L.Maas
als Antwort auf: CharlesBerteaux

Drop the text notes on the left side and the bottom. (That still applies)

Louis

EESignature

Please mention Revit version, especially when uploading Revit files.

Nachricht 9 von 9
Anonymous
als Antwort auf: L.Maas

Hello

I had a similar problem in the last few days. I found out that I had some reference planes that go beyond the paper size frame in my custom made title block family (multiple paper size family). Had to shorten them out and now it's all centered and printed as it should be.
