Precast Column and Panel Modeling

27 ANTWORTEN 27
GELÖST
Antworten
Nachricht 1 von 28
hliS658H
1397 Aufrufe, 27 Antworten

Precast Column and Panel Modeling

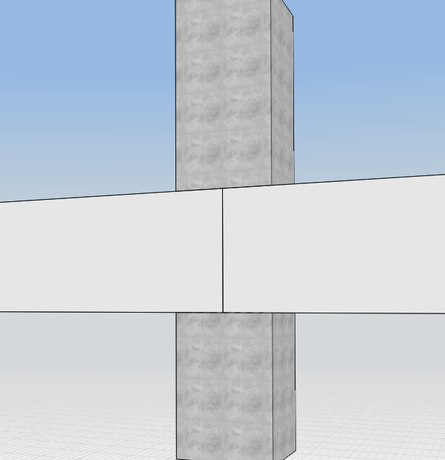

There is a notch in the column where two panels meet with the column, the panels will be pocketed inside the column; the column and panels will be aligned on the exterior.



I know the structure engineer will develop the above details. But how can I model it and the elevation will look right?

Is it possible to create a column family, whenever it meets the wall, it will generate a pocket? What is the best way to model a building with this type of connection?















27 ANTWORTEN 27
Nachricht 2 von 28
barthbradley
als Antwort auf: hliS658H

Notch the column and Join it to the Wall in the correct Join Order.



Notch1.pngNotch 2.png

Nachricht 3 von 28
barthbradley
als Antwort auf: hliS658H

Actually, you can create Parts from Wall, Divide and Notch via Division Profile.



https://knowledge.autodesk.com/support/revit/learn-explore/caas/CloudHelp/cloudhelp/2021/ENU/Revit-M...

Nachricht 4 von 28
hliS658H
als Antwort auf: barthbradley

The notch is not all through the column, only where the wall panel meets with column. Do you have any suggestion on modeling this detail?











Nachricht 5 von 28
ToanDN
als Antwort auf: hliS658H

You could create the wall as a curtain wall using the same basic wall type for panels.  Add grid lines at the joints to split the walls. Then join the wall panels with columns to notch the columns.

Nachricht 6 von 28
hliS658H
als Antwort auf: ToanDN

How can I create curtain wall with basic wall type? Curtain Wall is system family,  how to change glass to concrete?  Is it possible to set the grid as void?






Nachricht 7 von 28
ToanDN
als Antwort auf: hliS658H


@hliS658H wrote:

How can I create curtain wall with basic wall type? Curtain Wall is system family,  how to change glass to concrete?  Is it possible to set the grid as void?








Edit the curtain wall type and change the default panel type assignment to a basic wall type.
















Nachricht 8 von 28
barthbradley
als Antwort auf: hliS658H

So, that horizontal member is a Wall and you want it to cut a notch in the Column? If so, why can't you join the Wall to the Column to create the notch?



Notch 3.pngNotch 4.png

Nachricht 9 von 28
hliS658H
als Antwort auf: ToanDN

I use "join geometry", the wall panels don't cut notch in column so to only show wall material on the exterior finish, we still see the column material on the surface.




Nachricht 10 von 28
hliS658H
als Antwort auf: barthbradley

Do you have to manually leave a gap between the two wall panels?

Nachricht 11 von 28
ToanDN
als Antwort auf: hliS658H


@hliS658H wrote:

I use "join geometry", the wall panels don't cut notch in column so to only show wall material on the exterior finish, we still see the column material on the surface.





Share you file here because I can cut the column without issue.  Or see the 2022 file I posted.

Nachricht 12 von 28
hliS658H
als Antwort auf: ToanDN

1. The reason to use curtain wall instead of regular wall is to create joints through curtain wall grids?



2. I realized the reason the wall and column didn't join is because I already set the column not join to wall automatically.  So I like the approach, but the only concern is the graphics in plan - I need to make column and wall separated. The needs  conflict - in plan I don't want the wall and column to join; but for elevation, I need them to join so the wall can cut the column a notch and show correctly.













Nachricht 13 von 28
barthbradley
als Antwort auf: hliS658H


@hliS658H wrote:

Do you have to manually leave a gap between the two wall panels?




As I mentioned above, you can make that gap quite easily via Create Parts and Dividing Parts.



Div Gap 2.pngDiv Gap 3.png





Nachricht 14 von 28
ToanDN
als Antwort auf: hliS658H




Nachricht 15 von 28
hliS658H
als Antwort auf: ToanDN

Did you solve the conflict by using structural column?

Nachricht 16 von 28
ToanDN
als Antwort auf: hliS658H


@hliS658H wrote:

Did you solve the conflict by using structural column?


I always use structural columns when they are load bearing.

Nachricht 17 von 28
hliS658H
als Antwort auf: ToanDN

What makes the column keep the graphics of solid hatch even after joining the wall panel in plan?

Nachricht 18 von 28
hliS658H
als Antwort auf: barthbradley

Can you share your file here? Also, with your approach, is there way to keep column's solid fill so it doesn't merge with wall in plan?

Nachricht 19 von 28
ToanDN
als Antwort auf: hliS658H


@hliS658H wrote:

What makes the column keep the graphics of solid hatch even after joining the wall panel in plan?


A detail component nested in the structural column family.  Open the Revit file and edit the family.

Nachricht 20 von 28
hliS658H
als Antwort auf: ToanDN

How are you able to insert a detail family into a structure column family? I am trying to insert one into the architectural column, it doesn't allow.
