Possibility in placing tile pattern besides mass object

13 ANTWORTEN 13
GELÖST
Antworten
Nachricht 1 von 14
ahmadaldo
697 Aufrufe, 13 Antworten

Possibility in placing tile pattern besides mass object

Hello, it is a great tool to select surface, divide its surface, and select pattern through these steps:

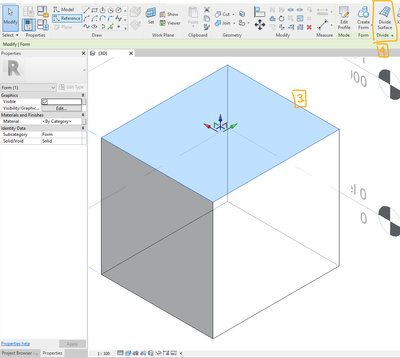

Step 1-2:


Step 3-4:


Step 5:




However, I can only divide surface and set pattern in the surface of in-place mass. Can I place it to the other surface elements? such as floor, ceiling, wall, etc.



Any answers and reccommendations would be appreciated.

Thank you





13 ANTWORTEN 13
Nachricht 2 von 14
barthbradley
als Antwort auf: ahmadaldo


@ahmadaldo wrote:

. Can I place it to the other surface elements? such as floor, ceiling, wall, etc.






It's not clear to me what your question is.  You can apply Roofs and Walls to Mass Faces.  Is that what you are wanting to do?  If so, finish and close out of Massing session and use the Roof by Face and/or the Wall by Face tool on the Massing & Site tab.

Nachricht 3 von 14
barthbradley
als Antwort auf: ahmadaldo

...or maybe you are wanting to apply a Pattern-Based Curtain Panel?



https://www.youtube.com/watch?v=WoqzTKB0Kcw

Nachricht 4 von 14
barthbradley
als Antwort auf: ahmadaldo


@ahmadaldo wrote:

I can only divide surface and set pattern in the surface of in-place mass. Can I place it to the other surface elements? such as floor, ceiling, wall, etc.






Okay, I think I understand the question. You want to know if you can divide other surfaces besides Mass surface. Right?  Well, technically no, if you mean via Divide Surface - but there are other ways to divide a surface.  It just depends on what you are ultimately trying to achieve (e.g. what the purpose of the "divided surface" is). Give me a specific example and I'll tell you how to get there.

Nachricht 5 von 14
ToanDN
als Antwort auf: ahmadaldo


@ahmadaldo wrote:



However, I can only divide surface and set pattern in the surface of in-place mass. Can I place it to the other surface elements? such as floor, ceiling, wall, etc.






No, you can only divide mass and generic model adaptive surfaces.  Alternately, you can export the Revit model to SAT, import it in a mass family, and divide surfaces.

Nachricht 6 von 14
ahmadaldo
als Antwort auf: barthbradley

Hello, thank you for your reply.



My main goal is calculating the number of tiles created for a surface.

From my thinking:

- First, I need to divide surface and set pattern.

- Second, I calculate the number of divided surface.

For the second, I can automatically calculate the number of tiles by creating mesh for each divided surface. It is done with Dynamo as below:


The script can accurately calculate the total number of tiles as 104.



However, I cannot automate the division of mass surface with Revit project environment. If you have suggestion or another option, please let me know.



Thank you











Nachricht 7 von 14
ToanDN
als Antwort auf: ahmadaldo

The script must be running in the conceptual mass family environment, not in the project environment, not even in the in place mass environment.



Another way is using a curtain panel schedule to count.

Nachricht 8 von 14
barthbradley
als Antwort auf: ahmadaldo

Why do you need Dynamo for this?  Quantification is easy in vanilla Revit.  What am I missing?

Nachricht 9 von 14
ahmadaldo
als Antwort auf: ToanDN

Hmm okay thank you, I will try curtain panel

Nachricht 10 von 14
ahmadaldo
als Antwort auf: barthbradley

What is vanilla Revit?

Nachricht 11 von 14
ahmadaldo
als Antwort auf: ahmadaldo

Oh I found it, let me check

Nachricht 12 von 14
barthbradley
als Antwort auf: ahmadaldo


@ahmadaldo wrote:

What is vanilla Revit?




I'm referring to just plain old Revit.  Plain old Revit can produce Quantity/Material Takeoffs.  Why do you need Dynamo?

Nachricht 13 von 14
ahmadaldo
als Antwort auf: barthbradley

It is part of my work. Dont need to worry at all.



Please just let me know if you have another option to create divided surface beside mass.

Nachricht 14 von 14
barthbradley
als Antwort auf: ahmadaldo


@ahmadaldo wrote:

It is part of my work. Dont need to worry at all.



Please just let me know if you have another option to create divided surface beside mass.




Okay. Got it loud and clear.



So,  you want another option to create divided surface?   A Curtain Wall. How about that?  A Surface Pattern. How about that?
