Phasing / visibility issue

28 ANTWORTEN 28
Antworten
Nachricht 1 von 29
Daisyl92
1213 Aufrufe, 28 Antworten

Phasing / visibility issue

Hi,

Can someone explain what I have done, for some reason one 'new construction' window is not showing aside from the swing but as you can see the long window under the same phase is. I have played with phases and visibility in regards to coarse to fine details and can only get the window to show when the Demo lines don't but I need them both.

Thank you !

Screen Shot 2020-08-12 at 3.47.32 pm.pngScreen Shot 2020-08-12 at 3.56.21 pm.pngScreen Shot 2020-08-12 at 4.00.52 pm.pngScreen Shot 2020-08-12 at 3.56.31 pm.png



Screen Shot 2020-08-12 at 3.56.35 pm.png

28 ANTWORTEN 28
Nachricht 3 von 29
barthbradley
als Antwort auf: Daisyl92

Set View Phase Filter=Show Complete, Phase=New Construction. Report back.



Actually, I think you want Phase Filter=Show Demo + New.  Right?






One more FWIW:



Phase GOs.png

Nachricht 4 von 29
bin
Advisor
als Antwort auf: Daisyl92

What is the create and demolish phase of that window?

Nachricht 5 von 29
martijn_pater
als Antwort auf: Daisyl92


@Daisyl92 wrote:

Hi,

Can someone explain what I have done, for some reason one 'new construction' window is not showing aside from the swing but as you can see the long window under the same phase is. I have played with phases and visibility in regards to coarse to fine details and can only get the window to show when the Demo lines don't but I need them both.


Is the window curtain wall based? Could be there might be some phasing issue, try copy-pasting the window in same place with the view set to its construction phase...

Nachricht 6 von 29
infoWL2PN
als Antwort auf: Daisyl92

It looks like you're implying that both windows are supposed to be of New Construction. If so, did you check whether the window on the right is in an Existing phase status?

Nachricht 7 von 29
ToanDN
als Antwort auf: Daisyl92

Your phase filters are strange to start with. Did you change them from the original settings intentionally or by mistakes?
Nachricht 8 von 29
Daisyl92
als Antwort auf: bin

Both windows of this elevation are under ' new construction' it appears to be only an issue on this elevation

Nachricht 9 von 29
barthbradley
als Antwort auf: Daisyl92

you still having issues?  Post your file.





...are you sure the elevation marker cut plane is set back from the wall far enough?

Nachricht 10 von 29
Daisyl92
als Antwort auf: ToanDN

I use 'show complete' and 'show new and existing' to show with and without demo lines. I have used these settings with another model which worked but happy to change if it'll help!

Nachricht 11 von 29
barthbradley
als Antwort auf: Daisyl92

I don't think it has anything to do with Phase Filters if it is happening in only one view. Maybe I'm wrong.

Nachricht 12 von 29
Daisyl92
als Antwort auf: Daisyl92

Maybe coloured helps? the red dash is demo is set as overridden. The "new construction" windows seem to be blanked out aside from where one overlaps with an "existing" demo'd window

Screen Shot 2020-08-13 at 8.24.53 am.pngScreen Shot 2020-08-13 at 8.34.01 am.pngScreen Shot 2020-08-13 at 8.33.25 am.pngScreen Shot 2020-08-13 at 8.33.42 am.png

Nachricht 13 von 29
barthbradley
als Antwort auf: Daisyl92

Can't you just post the file? Make it a heck of a lot easier. We could put this to bed in a matter of minutes.

Nachricht 14 von 29
bin
Advisor
als Antwort auf: Daisyl92

Move your new window horizontally a bit and see if it will come out, it can be hidden because it's not cutting the infilled wall.

Nachricht 15 von 29
Daisyl92
als Antwort auf: barthbradley

Thank you for your time!

Nachricht 16 von 29
bin
Advisor
als Antwort auf: Daisyl92

The problem you are having is:  The part of demolished wall created when you place a new window is blocking your new window.

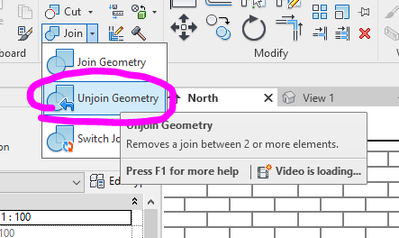

You can use unjoin tool an click on the infill wall(demolished)/window to separate the infill wall(demolished) from the existing wall, then override graphic the infill wall to make it 100% transparent.






bin_1-1597273896492.pngT

You will be able to show the new windows with the demolish lines of the infill wall.

If you don't want to see the demolish line, simply skip the uncut and Tab select the infill wall to hide it.



Nachricht 17 von 29
barthbradley
als Antwort auf: Daisyl92

Isn't this what you want to see with Show Complete?







Nachricht 18 von 29
Daisyl92
als Antwort auf: barthbradley

That plus the demo lines of the old window. It is for a DA and I need to show the new openings (shown) but also the window/s we are removing (in red dashed).

Nachricht 19 von 29
Daisyl92
als Antwort auf: barthbradley

It is, but the window detail is incorrect. I am hoping to have the same detail of windows regardless of what wall (existing or new wall)
It seems if an existing window sits on existing wall it shows correctly as well as new window on new wall but when a new window is set in existing wall the detail.
The window shows correctly if I remove the demo phase in the settings but I need to show the demo as well.








Nachricht 20 von 29
barthbradley
als Antwort auf: Daisyl92

Hide the Infill Wall then.



Hide Infill.png

Hide Infill 2.png
