Phasing Issue: Graphics

Below is my floor plan.



Black lines represent "NEW CONSTRUCTION", while red lines represent "DEMOLISH".Black lines represent "NEW CONSTRUCTION", while red lines represent "DEMOLISH".





































I applied my desired graphics setting. "NO OVERRIDE" for surfaces.I applied my desired graphics setting. "NO OVERRIDE" for surfaces.






































However, the model looks like this in 3d view.However, the model looks like this in 3d view.































My problem is, how can I remove the red fill on wall surface in 3d view?

I cannot remember any instance that I assign color red for surface fill.



Thank you in advance!

11 ANTWORTEN 11
Nachricht 2 von 12
ToanDN
als Antwort auf: maan-L

Check a couple of things:
1. Default wall material cut pattern
2. Edit 3d view type and look at coarse poche cut pattern
Nachricht 3 von 12
maan-L
als Antwort auf: ToanDN

I checked your recommendation, both didn't work.

Nachricht 4 von 12
eleron96
als Antwort auf: maan-L

The red is default colour for demolition in Revit, if I'm not mistaken. However you can change it (override,filter,phasing and etc.)

try to change "Material Deomo" to Material existСнимок.PNG

Nachricht 5 von 12
ToanDN
als Antwort auf: eleron96

But red are new walls in his drawing.
Nachricht 6 von 12
barthbradley
als Antwort auf: eleron96

Use don't by any chance have red solid fill as your wall's graphic appearance in Course View and maybe the VGO set to Course for the Walls???



Walls course.png

Nachricht 7 von 12
maan-L
als Antwort auf: eleron96

Got it!



Apparently I removed all the MATERIALS under GRAPHIC OVERRIDES.

I setup the materials and now it's okay!

どうもありがとうございました!!



Nachricht 8 von 12
ToanDN
als Antwort auf: maan-L

I did not see any material assigned to Phase Overrides from your screenshot.  So did you use the Phase-Demo material for the new walls?

Nachricht 9 von 12
maan-L
als Antwort auf: ToanDN

Yes. I removed the MATERIALS assigned to PHASE OVERRIDES and I forgot to re-assign it.

I chose the default material "Phase-Existing", "Phase-New" and "Phase-Demolish" available in material browser.

Nachricht 10 von 12
barthbradley
als Antwort auf: maan-L

Huh? Where are the Red Walls coming from???

Nachricht 11 von 12
maan-L
als Antwort auf: barthbradley

I'm not sure though. When I assigned "Phase-Existing", "Phase-New" and "Phase-Demolish", the red fill disappeared.

Nachricht 12 von 12
barthbradley
als Antwort auf: maan-L

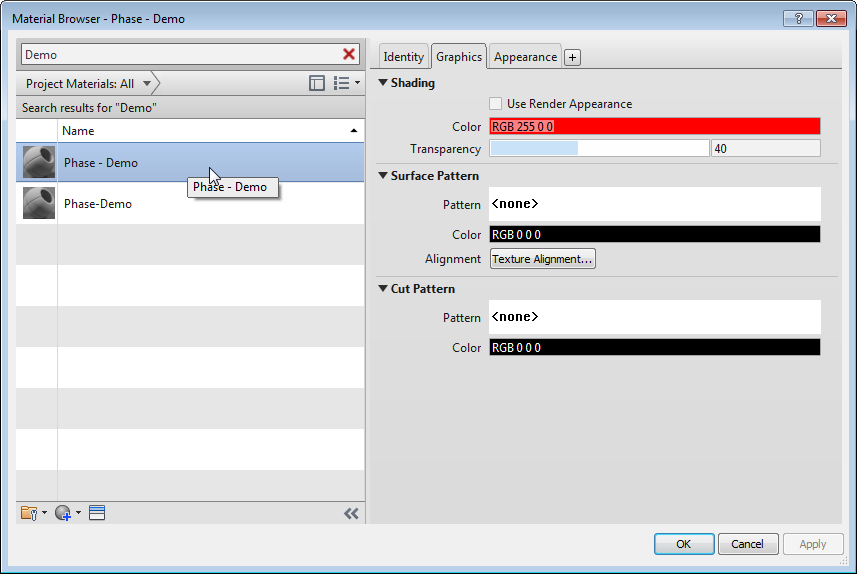

I think I'm missing something here. The Phasing Graphic Overrides settings, that you are showing in your solution, have no effect on the demo shading in 3D.  You must have changed the Material color for "Phase-Demo".  Is that right?





I'm talking about this:
