PDF adds complexity such as masks and multiple objects

7 ANTWORTEN 7
Antworten
Nachricht 1 von 8
BabendureDesignGroup
542 Aufrufe, 7 Antworten

PDF adds complexity such as masks and multiple objects

I'm receiving PDFs created from Revit files that add unnecessary complexity. For example, a filled circle with an outline in Revit turns into a filled rectangle masked with a circle and a separate circle with an outline only. A single shape turned into three shapes. Sometimes it even turns lines into long filled rectangles with thin, line-sized masks.



I've attached an examples of a simple PDF and a complex PDF.



All these extra objects and masks make the file very hard to use. I'd love to know what settings I could tell the client to change to keep the PDFs simple.

Tags (2)
7 ANTWORTEN 7
Nachricht 2 von 8
ToanDN
als Antwort auf: BabendureDesignGroup

Tell them to export PDf using Revit native PDF exporter.

Nachricht 3 von 8

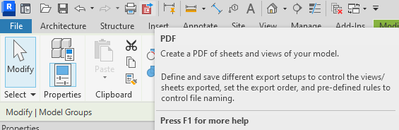

adding what ToanDN mentioned, export to pdf by clicking the top icon:

https://help.autodesk.com/view/RVT/2024/ENU/?guid=GUID-773AD069-024B-425E-8B9A-05D5246BDD16


I usually use raster process to prevent from missing elements

A resposta te ajudou? Não esqueça de curtir e aceitar como solução!


Vitor Bortoncello | Arquiteto | Especialista BIM


aAutodesk Certified Professional

Nachricht 4 von 8

Is the Internal Origin extremely far away from the Model?

Nachricht 5 von 8
azad.Nanva
als Antwort auf: BabendureDesignGroup

Do you have two View on each other or this is just one View?

If it solves your problem, please click Accept to enhance the Forum.
Nachricht 6 von 8

Hi @BabendureDesignGroup


Thanks a lot for posting your question to the forums!   Have the solutions suggested by @ToanDN @vitorbortoncello @barthbradley @azad.Nanva helped with your issue?

We look forward to hearing back from you with more information so we can help you as a community! 



Jonathan Hand


Industry Community Manager | AEC (Architecture & Building)

Nachricht 7 von 8
BabendureDesignGroup
als Antwort auf: ToanDN

Is that different from what most architects do? Are there any settings to change? I want to make sure I understand what I'm asking them to do.

Nachricht 8 von 8

Sorry, I receive the PDFs, but I don't know anything about how they've set up the original files. What effect would that have?
