Pattern in Filled Region vs Filter

6 ANTWORTEN 6
GELÖST
Antworten
Nachricht 1 von 7
julia_cheong
430 Aufrufe, 6 Antworten

Pattern in Filled Region vs Filter

Hello,



hope you are all doing great.



I have a problem with creating patterns with Filled Region and Filter.



I'm using the same pattern option in Filter and Filled Region with same color option (RGB:91,91,91),



but the pattern in Filled Region looks more faded. Does anyone have a solution to match these two patterns?



Thank you.




6 ANTWORTEN 6
Nachricht 2 von 7
ralphdenhaan
als Antwort auf: julia_cheong

Hi,

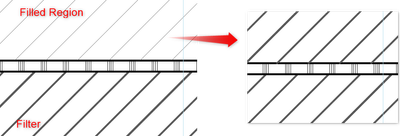

You can change the Line Weight of the Filled Region to match the same thickness.







Select Accept as Solution and Likes are always welcome.


Ralph den Haan, (Lazy) BIM Specialist


LinkedIn | LazyBIM Blog




Nachricht 3 von 7
julia_cheong
als Antwort auf: ralphdenhaan

Thank you for reply. It's working with the Filled Region lineweigh setting,

but do you know how I can change the lineweight of the pattern in Filter?



Best Regards,



Julia

Nachricht 4 von 7
ralphdenhaan
als Antwort auf: julia_cheong

Depending on the category of your filter, you have the ability to modify the Line Weight settings within the Object Styles. In your case, use the Projection Line Weight






Select Accept as Solution and Likes are always welcome.


Ralph den Haan, (Lazy) BIM Specialist


LinkedIn | LazyBIM Blog




Nachricht 5 von 7
julia_cheong
als Antwort auf: ralphdenhaan

Thank you.

But if I change the settings in Object Style, the lineweight of the boundary lines also change.

Can I change the lineweight of the pattern only??

Nachricht 6 von 7
ralphdenhaan
als Antwort auf: julia_cheong

In your filter change the Lines Line Weight to Override the Object Style:
I don't know if there is any other easier workaround for this.




Select Accept as Solution and Likes are always welcome.


Ralph den Haan, (Lazy) BIM Specialist


LinkedIn | LazyBIM Blog




Nachricht 7 von 7
julia_cheong
als Antwort auf: ralphdenhaan

This is perfect! Thank you so much :leicht_lächelndes_Gesicht:
