No Grid in Ceiling Plan

10 ANTWORTEN 10
Antworten
Nachricht 1 von 11
Anonymous
2494 Aufrufe, 10 Antworten

No Grid in Ceiling Plan

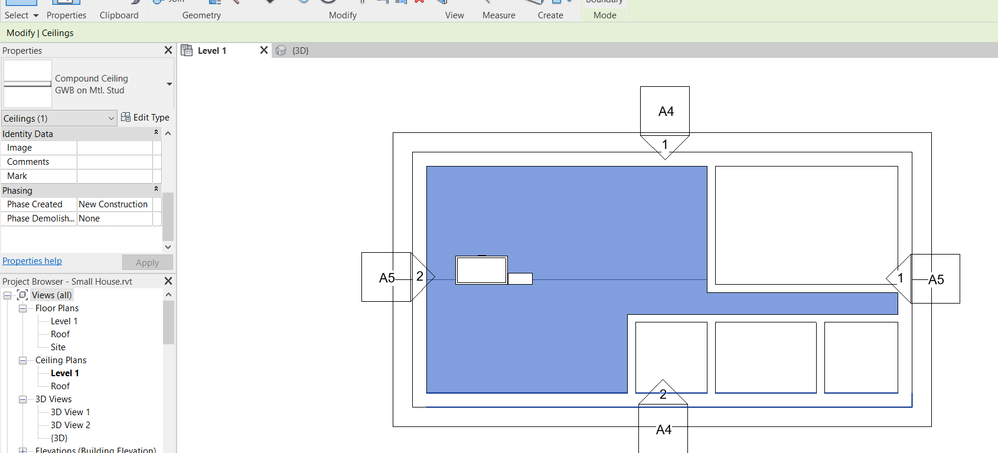

So I've had this problem for a while but each time I go into the ceiling plan there's no grid on the ceiling plan so I can put lights and other things on there I'm so confused and frustrated please help.

Autodesk Revit 2021.1.2 - [Small House - Reflected Ceiling Plan_ Level 1] 5_2_2021 4_04_07 AM.png

10 ANTWORTEN 10
Nachricht 2 von 11
RDAOU
als Antwort auf: Anonymous

@Anonymous  go visibility graphics and make sure Ceiling category is checked visible ... then check that the view range settings and make sure the set rang is adequate to show the ceiling

YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 3 von 11
Anonymous
als Antwort auf: RDAOU

My ceilings are checked in visibility and graphics  and as for view rang is set to cut plain 7" 6" and off set 2" 0"

Nachricht 4 von 11
barthbradley
als Antwort auf: Anonymous

Reveal Hidden Elements.

Nachricht 5 von 11
Anonymous
als Antwort auf: barthbradley

no elements are hidden

Nachricht 6 von 11
syman2000
als Antwort auf: Anonymous

Go to 3d and check and see if you able to see the ceiling. If there is ceiling, check the height offset from the level. Normally if you set ceiling offset to 0, it will be at the floor. If you don't see it, set the 3d phase to show none. Check if the ceiling is placed in wrong phase. Also if you have design option set, check and see if you placed the ceiling in different design option.

Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 7 von 11
RDAOU
als Antwort auf: Anonymous

@Anonymous



Did you assign any material to it?


YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 8 von 11
barthbradley
als Antwort auf: Anonymous

Did you actually create a Ceiling?  One with a Surface Pattern?  On the same Level you are Viewing?



Here's a cheat sheet you can use to find "stuff":



Missing Something in a Revit View? 33 Steps to Find Stuff | Ideate Inc

Nachricht 9 von 11
Anonymous
als Antwort auf: Anonymous

Here's the project if anyone can figure it out I appreciate it

Nachricht 10 von 11
syman2000
als Antwort auf: Anonymous

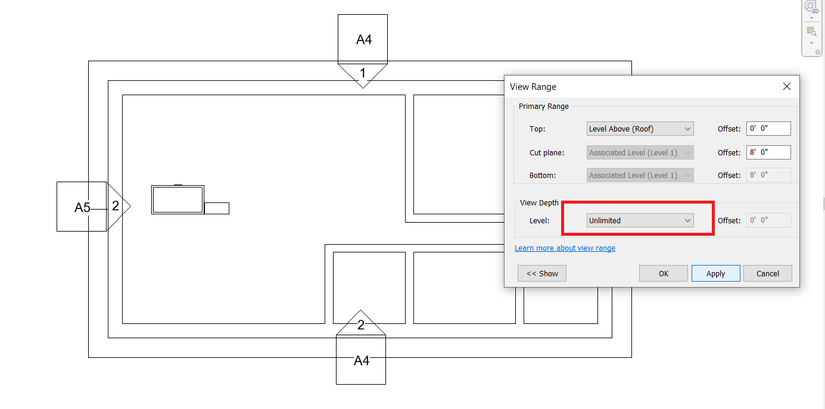

When I set to unlimited, it will show up.




Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 11 von 11
Anonymous
als Antwort auf: syman2000

omg thank you
