Modifying Graphical Column Schedule

10 ANTWORTEN 10
GELÖST
Antworten
Nachricht 1 von 11
BigPicture045
931 Aufrufe, 10 Antworten

Modifying Graphical Column Schedule

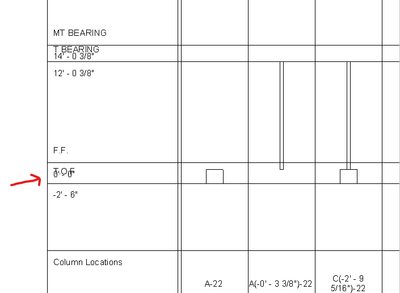

You can see in this graphical column schedule that there is overlapping text.



I also need to add a row with a custom description. How do I modify this schedule?






10 ANTWORTEN 10
Nachricht 2 von 11
barthbradley
als Antwort auf: BigPicture045
Nachricht 3 von 11
BigPicture045
als Antwort auf: barthbradley

Spacing is not the best after trying various sizes:






Is it possible to add additional rows with custom text:




I need to mimic this schedule.

Nachricht 4 von 11
barthbradley
als Antwort auf: BigPicture045

Can't you hide some levels via Hidden Levels?

Nachricht 5 von 11
BigPicture045
als Antwort auf: barthbradley

Yes, that works.

Nachricht 6 von 11
PhilvK
als Antwort auf: barthbradley

Changing the dimension for Between Segments has no effect on the issue shown below. Any clues on how to get the levels so they are not overlapping? In the example below for instance, Level Roof 2 is lower than Roof 3 but overlaps as shown, and I need to lower Low Roof a little..



Column Schedule.jpg

Nachricht 7 von 11
barthbradley
als Antwort auf: PhilvK

Change the View Scale.

Nachricht 8 von 11
PhilvK
als Antwort auf: barthbradley

Not ideal. Increasing the View Scale makes it not fit on a sheet, and levels close to each ocher still overlap. Thank you anyway.

Nachricht 9 von 11
barthbradley
als Antwort auf: PhilvK

change the Text Size then. Or no to that also?

Nachricht 10 von 11
PhilvK
als Antwort auf: barthbradley

Changing text size helps, but then it's difficult to read. The main problem is controlling the space between levels, especially at the top: I get a wide gap even setting it to 0". It should collapse when you hide unused upper levels.

Thank  you again, enough for today, enjoy the holiday (if it applies)!









Nachricht 11 von 11
PhilvK
als Antwort auf: barthbradley

By the way, there's no 'mark as accepted' box at the bottom of your post.
