Modify sublayers of floor in floor-wall encounter

8 ANTWORTEN 8
GELÖST
Antworten
Nachricht 1 von 9
elisag23
365 Aufrufe, 8 Antworten

Modify sublayers of floor in floor-wall encounter

Hi. I am new in Revit. I am trying to solve this encounter between a steel-frame floor and wall. I am following the detail attatched.

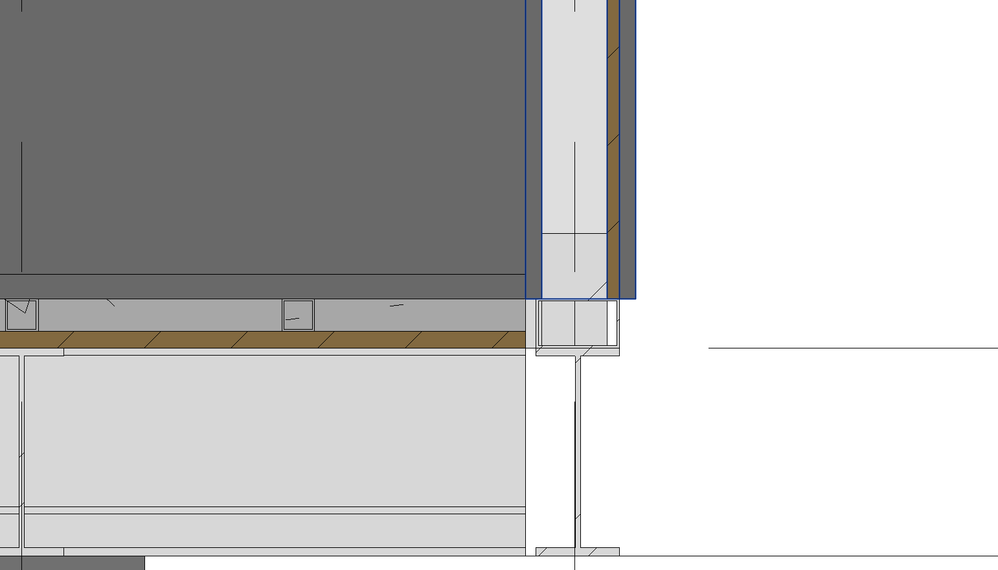

How can I modify the lenght of the different layers of the floor so that they arrive at the corresponding point in the wall? For example, the concrete layer arrives at the border beam, then the wood flooring to the lower wall wood beam, etc. Screenshot 2023-11-15 104604.pngScreenshot 2023-11-15 104609.png

8 ANTWORTEN 8
Nachricht 2 von 9
jay_colcombe
als Antwort auf: elisag23

Unfortunately you cannot modify sublayers of floors like walls.

The simplest method would be to have a Floor Construction Type for each of the layers which have differing boundary positions and place them on top of each other with offsets in the elevation

The only other alternative if to use 2D masking elements in Detail Views



Jay Colcombe

Autodesk Certified Instructor
Revit Architecture & Structure Certified Professional
AutoCAD Certified Professional
B.Sc. Hons Civil & Structural Engineering

If you find my post interesting, feel free to give a Kudo.
If it solves your problem, please click Accept to enhance the Forum.
Nachricht 3 von 9
ToanDN
als Antwort auf: elisag23

You could create parts from the floor, turn on parts grips, and stretch each layer.

Nachricht 4 von 9
elisag23
als Antwort auf: ToanDN

So my floor type would contain only one layer and then I would add the others with this tool? Is that what you are suggesting?

Nachricht 5 von 9
barthbradley
als Antwort auf: elisag23

Sounds like you want to use Cut Profile to me. Maybe I'm misreading.



Help | Change the Cut Profile of Elements | Autodesk



Help | Video: Change the Cut Profile of Elements | Autodesk

Nachricht 6 von 9
barthbradley
als Antwort auf: elisag23

Nachricht 7 von 9
ToanDN
als Antwort auf: elisag23

No that is not what I suggested. I suggested to use Create Parts tool so that you have each part for a layer and you can stretch them individually.



Select the floor and you can see Create Parts button on the ribbon.

Nachricht 8 von 9
elisag23
als Antwort auf: ToanDN

It appears grayed outScreenshot 2023-11-17 151108.png

Nachricht 9 von 9
barthbradley
als Antwort auf: elisag23


@elisag23 wrote:

It appears grayed out



Because you Modified Sub-Elements. Did you slope the floor or something? If not intentionally, Reset Shape.
